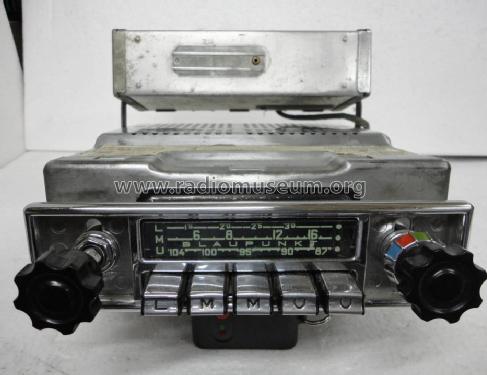

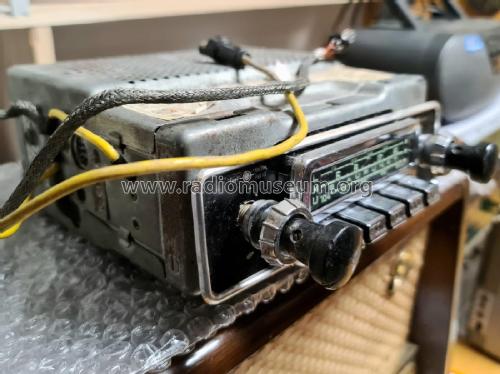

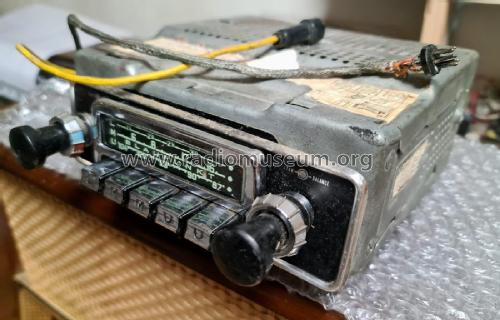

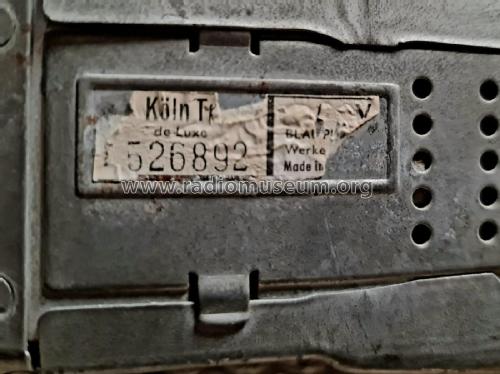

Köln TR de Luxe 32701 ab T 500001

Blaupunkt (Ideal), Berlin, später Hildesheim

Data
Forum
Pictures
Collections

  • Year
  • 1962/1963
  • Category
  • Car Radio, perhaps also + sound player/recorder
  • Radiomuseum.org ID
  • 94794
    • alternative name: Ideal-Radiotelephon- und App-fabr. || Ideal-Werke AG; Berlin (ab 1934)
    • Brand: Rotstern

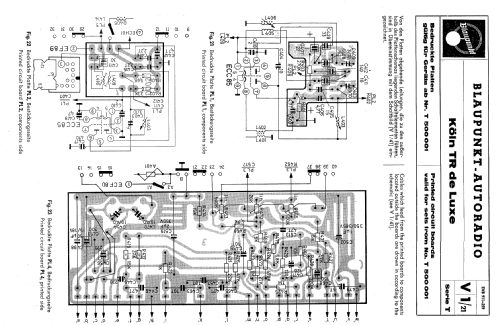

Click on the schematic thumbnail to request the schematic as a free document.

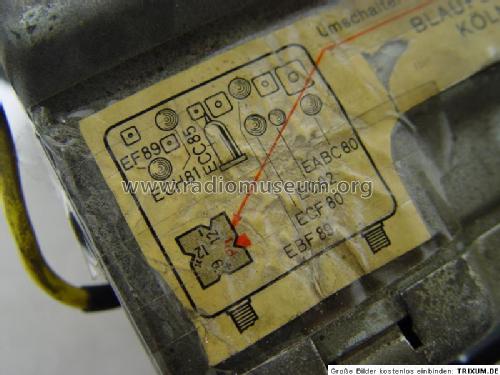

 Technical Specifications

  • Number of Tubes
  • 7
  • Number of Transistors
  • 3
  • Main principle
  • Superhet, double/triple conversion; ZF/IF 460/10700/6700 kHz; 3 AF stage(s)
  • Tuned circuits
  • 7 AM circuit(s)     12 FM circuit(s)
  • Wave bands
  • Broadcast, Long Wave and FM or UHF.
  • Details
  • Remote Control (with wire or wireless)
  • Power type and voltage
  • Storage Battery for all (e.g. for car radios and amateur radios) / 6; 12 Volt
  • Loudspeaker
  • - This model requires external speaker(s).
  • Power out
  • 4 W (unknown quality)
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: Köln TR de Luxe 32701 ab T 500001 - Blaupunkt Ideal, Berlin,
  • Shape
  • Chassis only or for «building in»
  • Dimensions (WHD)
  • 183 x 82 x 168 mm / 7.2 x 3.2 x 6.6 inch
  • Notes

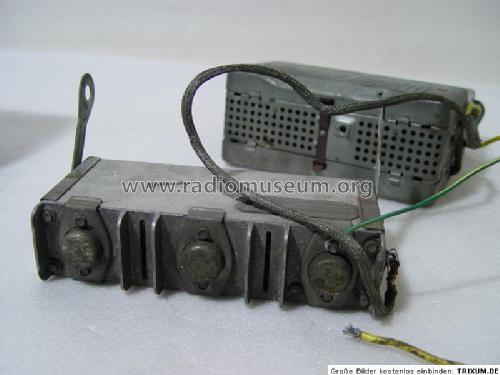

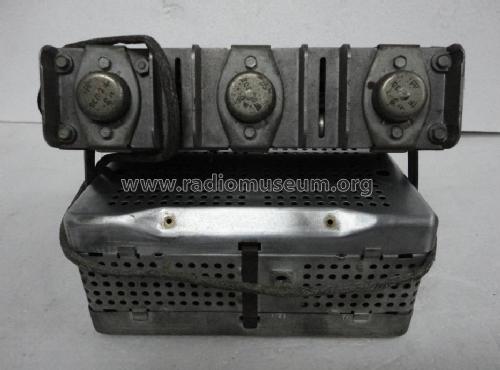

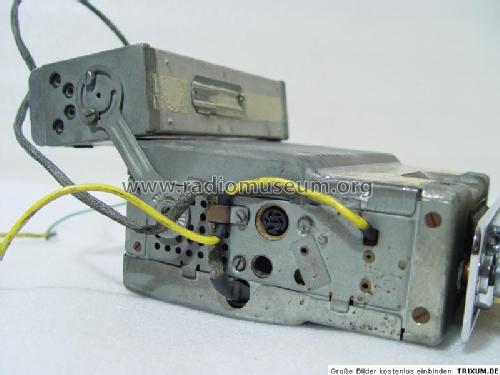

  • Endstufe mit Spannungswandler (Transistorteil) 183 × 86 × 47 mm.
    Ausgangsleistung bei 12 V = 6 Watt.
    Bei UKW arbeitet der Empfänger als Doppelsuper mit einer 2. ZF von 6,7 MHz.

    "Selectomat" Sendersuchlauf.

  • Net weight (2.2 lb = 1 kg)
  • 3.7 kg / 8 lb 2.4 oz (8.15 lb)
  • Price in first year of sale
  • 525.00 DM
  • Literature/Schematics (1)
  • -- Original-techn. papers.
  • Author
  • Model page created by Richard Winter. See "Data change" for further contributors.
