LV16 Holz

LV16; Blaupunkt Ideal, (ID = 1738607) Radio
LV16; Blaupunkt Ideal, (ID = 1326645) Radio LV16; Blaupunkt Ideal, (ID = 1326646) Radio
LV16; Blaupunkt Ideal, (ID = 1326647) Radio LV16; Blaupunkt Ideal, (ID = 1929522) Radio

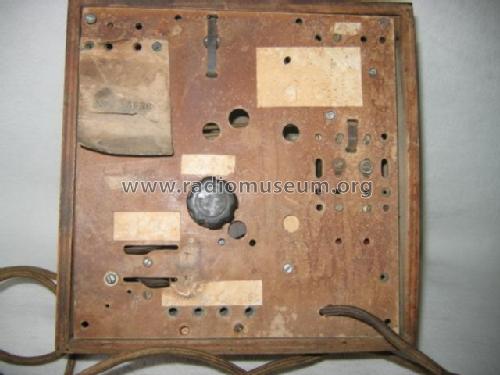

LV16; Blaupunkt Ideal, (ID = 1929523) Radio LV16; Blaupunkt Ideal, (ID = 1998749) Radio
Use red slider bar for more.
LV16; Blaupunkt Ideal, (ID = 1326645) Radio
Blaupunkt Ideal,: LV16 [Radio] ID = 1326645 800x773
Select picture or schematic to display from thumbnails on the right and click for download.
For model LV16 Holz, Blaupunkt (Ideal), Berlin, später Hildesheim

Country:  Germany
Manufacturer / Brand:  Blaupunkt (Ideal), Berlin, später Hildesheim
alternative name

Ideal-Radiotelephon- und App-fabr. || Ideal-Werke AG; Berlin (ab 1934)
Brand
Rotstern
Year: 1946/1947 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 3: RV12P2000 RV12P2000 VY2 or
Semiconductors (the count is only for transistors) Tr.Gl.=Metal-rectif.
Main principle TRF with regeneration; 1 AF stage(s)
Tuned circuits 1 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker Magnetic loudspeaker (reed) of high quality (free mooving - only possible past 1931). / Ø 18 cm = 7.1 inch
Power out
from Radiomuseum.org Model: LV16 [Holz] - Blaupunkt Ideal, Berlin,
Material Wooden case
Shape Tablemodel without push buttons, Mantel/Midget/Compact up to 14
Dimensions (WHD) 200 x 200 x 110 mm / 7.9 x 7.9 x 4.3 inch
Notes

Nicht bedienbare Rückkopplung.
Lautsprecher: Perm.-dyn., elektro-dynamisch oder Freischwinger möglich.

Net weight (2.2 lb = 1 kg) 1.4 kg / 3 lb 1.3 oz (3.084 lb)
Circuit diagram reference Lange + Schenk Heft 29 von 1947

Model page created by Konrad Birkner † 12.08.2014. See "Data change" for further contributors.
