• Year
  • 1946/1947
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 670
    • alternative name: Ideal-Radiotelephon- und App-fabr. || Ideal-Werke AG; Berlin (ab 1934)
    • Brand: Rotstern

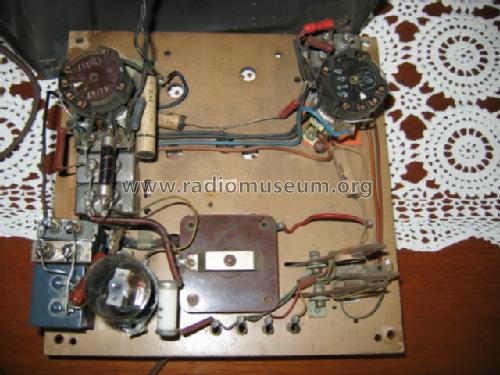

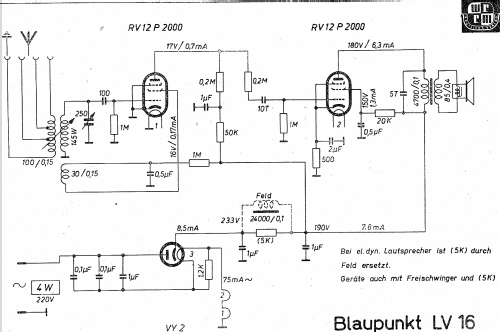

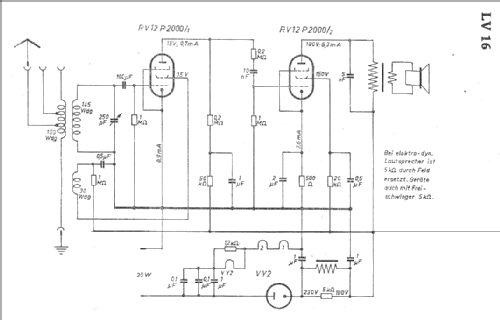

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 3
  • Number of Transistors
  • Main principle
  • TRF with regeneration; 1 AF stage(s)
  • Tuned circuits
  • 1 AM circuit(s)
  • Wave bands
  • Broadcast only (MW).
  • Power type and voltage
  • Alternating Current supply (AC) / 220 Volt
  • Loudspeaker
  • Magnetic loudspeaker (reed) of high quality (free mooving - only possible past 1931). / Ø 18 cm = 7.1 inch
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: LV16 [Metall] - Blaupunkt Ideal, Berlin,
  • Shape
  • Tablemodel without push buttons, Mantel/Midget/Compact up to 14
  • Dimensions (WHD)
  • 200 x 200 x 110 mm / 7.9 x 7.9 x 4.3 inch
  • Notes
  • Nicht bedienbare Rückkopplung.
    Lautsprecher: Perm.-dyn., elektro-dynamisch oder Freischwinger möglich.

  • Net weight (2.2 lb = 1 kg)
  • 1.4 kg / 3 lb 1.3 oz (3.084 lb)
  • Source of data
  • Radiokatalog Band 1, Ernst Erb
  • Circuit diagram reference
  • Lange + Schenk Heft 29 von 1947
