Manila 74520 - 74530

• Country
• Germany

• Manufacturer / Brand
• Blaupunkt (Ideal), Berlin, später Hildesheim

• Year
• 1964/1965

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 109878

• • alternative name: Ideal-Radiotelephon- und App-fabr. || Ideal-Werke AG; Berlin (ab 1934)
  • Brand: Rotstern

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 11

• Valves / Tubes
• PCC88 PCF82 PCL84 PCL84 PCH200 PCL85 ECH84 PL500 PY88 DY86 A59-11W or A59-12W

• Number of Transistors
• 8

• Semiconductors
• AF139 AF139 AF126 AF137 AF115 AF115 AF121 AF118 or. SE1001 AA119 AA119 OA90 OA161 M80C4 M80C4 BY250 or. OY101

• Main principle
• Superhet with RF-stage

• Wave bands
• VHF incl. FM and/or UHF (see notes for details)

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• 2 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org
• Model: Manila 74520 - 74530 - Blaupunkt Ideal, Berlin,

• Shape

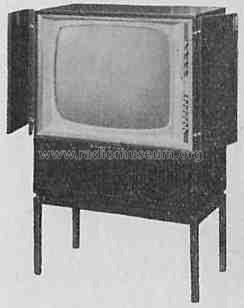

• Console with Push Buttons.

• Dimensions (WHD)
• 660 x 990 x 360 mm / 26 x 39 x 14.2 inch

• Notes

• Blaupunkt Manila 74.520 und 74.530 sind 59 cm s/w Fernsehempfänger. Unterschiede:

  • Manila Typ 74.520 nur VHF-Empfang, UHF-Teil ist nachrüstbar.
  • Manila Typ 74.530 VHF- und UHF-Empfang

  Die angegebene Halbleiterbestückung bezieht sich auf den Typ 74.530
  In der 4. Bild-ZF-Stufe wird der Transistor AF118 oder alternativ die Type SE1001 verwendet.

  Technische Daten wie Cortina 74.230, jedoch Schrank mit dreiteiliger, ganz zurückklappbarer und abschließbarer Tür.

  ---

  Set of two black and white televisions using the same circuit diagram. Model 74520 is equipped with VHF only and is prepared for UHF installation. Model 74530 is equipped with VHF and UHF. The two red boxes in diagrams 3 and 4 specify that when the SE1001 transistor is used in place AF118, the circuit diagram undergoes the indicated change.

• Net weight (2.2 lb = 1 kg)
• 45 kg / 99 lb 1.9 oz (99.119 lb)

• Price in first year of sale
• 1,545.00 DM

• Source of data
• Handbuch VDRG 1964/1965
