• Country
• Germany

• Manufacturer / Brand
• Blaupunkt (Ideal), Berlin, später Hildesheim

• Year
• 1979/1980

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 84538

• • alternative name: Ideal-Radiotelephon- und App-fabr. || Ideal-Werke AG; Berlin (ab 1934)
  • Brand: Rotstern

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 3

• Semiconductors
• BF255 BF255 2N4403 1N4001 1N4001 ZPD6,2 TDA1220 TBA820M B80C800

• Main principle
• Superheterodyne (common); ZF/IF 455/10700 kHz

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Power out
• 1 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

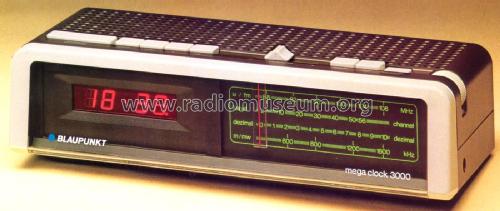

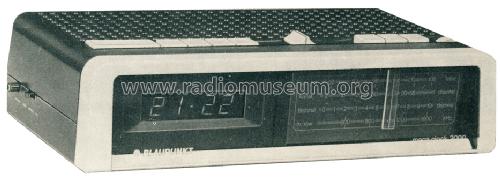

• Model: Mega Clock 3000 7.628.260 - Blaupunkt Ideal, Berlin,

• Shape
• Tablemodel with Clock ((Alarm-) Clock Radio).

• Dimensions (WHD)
• 300 x 150 x 85 mm / 11.8 x 5.9 x 3.3 inch

• Notes

• Nachfolger von Clock 2000. Transistoren 2xBf255, 2N4403 im Uhren-Modul (Clock-Modul);
  2 IC: TDA1220 und TBA820M.

• Net weight (2.2 lb = 1 kg)
• 1.2 kg / 2 lb 10.3 oz (2.643 lb)

• Source of data
• - - Data from my own collection

• Mentioned in
• - - Manufacturers Literature

• Literature/Schematics (1)
• -- Original-techn. papers. (Katalog Idealprogramm 1979)

• Author
• Model page created by Alexander Jordan. See "Data change" for further contributors.
