• Country
• Germany

• Manufacturer / Brand
• Blaupunkt (Ideal), Berlin, später Hildesheim

• Year
• 1964–1966

• Category
• Car Radio, perhaps also + sound player/recorder

• Radiomuseum.org ID
• 25930

• • alternative name: Ideal-Radiotelephon- und App-fabr. || Ideal-Werke AG; Berlin (ab 1934)
  • Brand: Rotstern

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 12

• Semiconductors
• AF126 AF126 AF116 AF117 AF117 AC151 AC151 AC151 AC151 AD148 AD131 AD131 OA79 OA79 GES3

• Main principle
• Superhet with RF-stage; ZF/IF 460 or 452 kHz

• Tuned circuits
• 8 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Storage Battery for all (e.g. for car radios and amateur radios) / 12; 24 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 12 W (unknown quality)

• Material
• Metal case

• from Radiomuseum.org

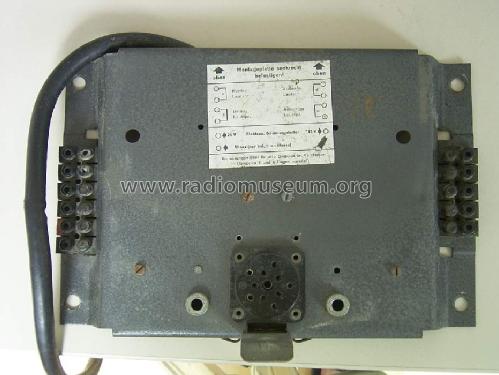

• Model: München III ab V 990001 - Blaupunkt Ideal, Berlin,

• Shape
• Chassis only or for «building in»

• Dimensions (WHD)
• 183 x 138 x 125 mm / 7.2 x 5.4 x 4.9 inch

• Notes

• Omnibus-Übertragungsanlage München III bestehend aus Empfängerteil Stuttgart Serie V ohne NF-Stufe mit Bedienungsteil und Leistungsverstärker in zwei Metallgehäusen. Verstärkerteil mit Montageplatte: 230×150×87 mm.

• Net weight (2.2 lb = 1 kg)
• 7.1 kg / 15 lb 10.2 oz (15.639 lb)

• Price in first year of sale
• 625.00 DM

• External source of data
• Erb

• Source of data
• Handbuch VDRG 1964/1965

• Mentioned in
• Handbuch VDRG 1965/1966

• Literature/Schematics (1)
• -- Original-techn. papers.
