Münster 7.635.620.4xx

Münster 7.635.620.4xx; Blaupunkt Ideal, (ID = 481674) Car Radio

Münster 7.635.620.4xx; Blaupunkt Ideal, (ID = 481675) Car Radio

Münster 7.635.620.4xx; Blaupunkt Ideal, (ID = 481676) Car Radio

Münster 7.635.620.4xx; Blaupunkt Ideal, (ID = 481677) Car Radio

Münster 7.635.620.4xx; Blaupunkt Ideal, (ID = 481678) Car Radio

Münster 7.635.620.4xx; Blaupunkt Ideal, (ID = 481679) Car Radio

Münster 7.635.620.4xx; Blaupunkt Ideal, (ID = 481680) Car Radio
Münster 7.635.620.4xx; Blaupunkt Ideal, (ID = 2384061) Car Radio Münster 7.635.620.4xx; Blaupunkt Ideal, (ID = 799805) Car Radio

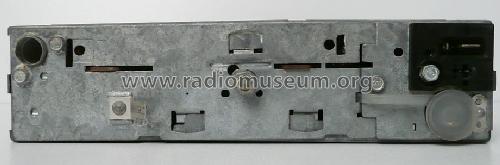

Münster 7.635.620.4xx; Blaupunkt Ideal, (ID = 799808) Car Radio Münster 7.635.620.4xx; Blaupunkt Ideal, (ID = 551523) Car Radio
Münster 7.635.620.4xx; Blaupunkt Ideal, (ID = 799807) Car Radio Münster 7.635.620.4xx; Blaupunkt Ideal, (ID = 2211038) Car Radio
Münster 7.635.620.4xx; Blaupunkt Ideal, (ID = 2211039) Car Radio
Use red slider bar for more.
Münster 7.635.620.4xx; Blaupunkt Ideal, (ID = 2384061) Car Radio
Blaupunkt Ideal,: Münster 7.635.620.4xx [Car Radio] ID = 2384061 1400x1050
Select picture or schematic to display from thumbnails on the right and click for download.
For model Münster 7.635.620.4xx, Blaupunkt (Ideal), Berlin, später Hildesheim

Country:  Germany
Manufacturer / Brand:  Blaupunkt (Ideal), Berlin, später Hildesheim
alternative name

Ideal-Radiotelephon- und App-fabr. || Ideal-Werke AG; Berlin (ab 1934)
Brand
Rotstern
Year: 1975 Category: Car Radio, perhaps also + sound player/recorder
Semiconductors (the count is only for transistors) 10: BF255 BF255 BF255 BF254 BF254 BC238 BC238 BC328 BD433 BD434
Main principle Super-Heterodyne (Super in general); ZF/IF 455/10700 kHz
Tuned circuits 7 AM circuit(s)     10 FM circuit(s)
Wave bands Broadcast (BC) and FM or UHF.
Details
Power type and voltage Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt
Loudspeaker - This model requires external speaker(s).
Power out 5 W (unknown quality)
from Radiomuseum.org Model: Münster 7.635.620.4xx - Blaupunkt Ideal, Berlin,
Material Metal case
Shape Chassis only or for «building in»
Dimensions (WHD) 179 x 43 x 115 mm / 7 x 1.7 x 4.5 inch
Literature/Schematics (1) -- Original-techn. papers.

Model page created by Richard Winter. See "Data change" for further contributors.
