Musiktruhe T52W

Musiktruhe T52W; Blaupunkt Ideal, (ID = 110915) Radio

Musiktruhe T52W; Blaupunkt Ideal, (ID = 110916) Radio

Musiktruhe T52W; Blaupunkt Ideal, (ID = 110917) Radio

Musiktruhe T52W; Blaupunkt Ideal, (ID = 110918) Radio

Musiktruhe T52W; Blaupunkt Ideal, (ID = 110919) Radio

Musiktruhe T52W; Blaupunkt Ideal, (ID = 110920) Radio

Musiktruhe T52W; Blaupunkt Ideal, (ID = 110921) Radio

Musiktruhe T52W; Blaupunkt Ideal, (ID = 11394) Radio

Musiktruhe T52W; Blaupunkt Ideal, (ID = 11395) Radio
Musiktruhe T52W; Blaupunkt Ideal, (ID = 163932) Radio Musiktruhe T52W; Blaupunkt Ideal, (ID = 167680) Radio
Musiktruhe T52W; Blaupunkt Ideal, (ID = 167682) Radio Musiktruhe T52W; Blaupunkt Ideal, (ID = 167683) Radio

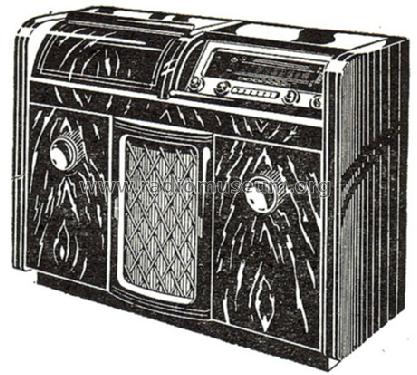

Musiktruhe T52W; Blaupunkt Ideal, (ID = 97955) Radio
Use red slider bar for more.

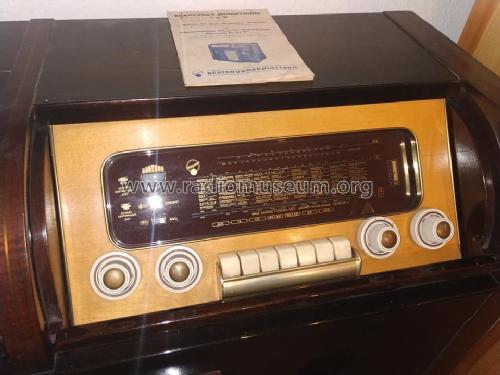

Musiktruhe T52W; Blaupunkt Ideal, (ID = 163932) Radio
Blaupunkt Ideal,: Musiktruhe T52W [Radio] ID = 163932 757x584
Select picture or schematic to display from thumbnails on the right and click for download.
For model Musiktruhe T52W, Blaupunkt (Ideal), Berlin, später Hildesheim:
Q= prospectus

Country:  Germany
Manufacturer / Brand:  Blaupunkt (Ideal), Berlin, später Hildesheim
alternative name

Ideal-Radiotelephon- und App-fabr. || Ideal-Werke AG; Berlin (ab 1934)
Brand
Rotstern
Year: 1952/1953 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 11: EF80 EC92 EF41 ECH81 EM71 EBF15 EAA11 ECC81 EL11 EL11 AZ12
Main principle Super-Heterodyne (Super in general); ZF/IF 473/10700 kHz
Tuned circuits 8 AM circuit(s)     10 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details Changer (Record changer)
Power type and voltage Alternating Current supply (AC) / 110,125, 150, 220-240 Volt
Loudspeaker 2 Loudspeakers
Power out
from Radiomuseum.org Model: Musiktruhe T52W - Blaupunkt Ideal, Berlin,
Material Wooden case
Shape Console with Push Buttons.
Dimensions (WHD) 1100 x 830 x 430 mm / 43.3 x 32.7 x 16.9 inch
Notes Variable Bandbreite, KW-Lupe, drehbare Ferrit-Antenne.
Phono-Chassis = Phonomat PL512.
Net weight (2.2 lb = 1 kg) 58 kg / 127 lb 12.1 oz (127.753 lb)
Price in first year of sale 1'480.00 DM
Collectors' prices
External source of data Erb
Source of data Kat.d.Rundf.GrossH.1952/53
