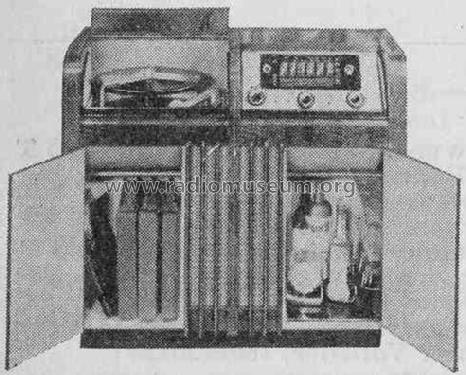

Musiktruhe T965W
Blaupunkt (Ideal), Berlin, später Hildesheim
- Country
- Germany
- Manufacturer / Brand
- Blaupunkt (Ideal), Berlin, später Hildesheim
- Year
- 1950/1951
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 804
-
- alternative name: Ideal-Radiotelephon- und App-fabr. || Ideal-Werke AG; Berlin (ab 1934)
- Brand: Rotstern
- Number of Tubes
- 9
- Main principle
- Superheterodyne (common); ZF/IF 473 kHz
- Tuned circuits
- 8 AM circuit(s)
- Wave bands
- Broadcast, Long Wave, more than 2 x SW plus FM or UHF.
- Power type and voltage
- Alternating Current supply (AC) / 110; 125; 220; 240 Volt
- Loudspeaker
- 2 Loudspeakers
- Material
- Wooden case
- from Radiomuseum.org
- Model: Musiktruhe T965W - Blaupunkt Ideal, Berlin,
- Shape
- Console with any shape - in general
- Dimensions (WHD)
- 950 x 850 x 410 mm / 37.4 x 33.5 x 16.1 inch
- Notes
- Ratio-Detektor; 3× KW. Ein Edyn-LS 24,5 cm Ø, ein Pdyn-LS 10 cm Ø.
- Price in first year of sale
- 965.00 DM
- Source of data
- Kat.d. Rundf.Gr.Handel 1950/51 / Radiokatalog Band 1, Ernst Erb
- Mentioned in
- Funk-Technik (FT) (5015)
- Other Models
-
