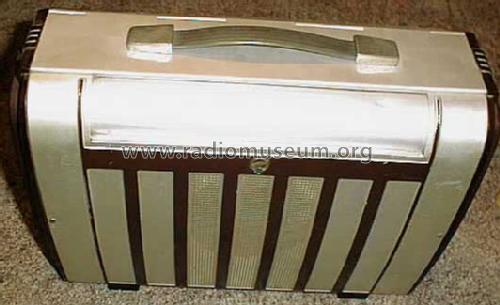

Nixe K610A; Blaupunkt Ideal, (ID = 60265) Radio Nixe K610A; Blaupunkt Ideal, (ID = 135) Radio
Nixe K610A; Blaupunkt Ideal, (ID = 67211) Radio Nixe K610A; Blaupunkt Ideal, (ID = 105479) Radio

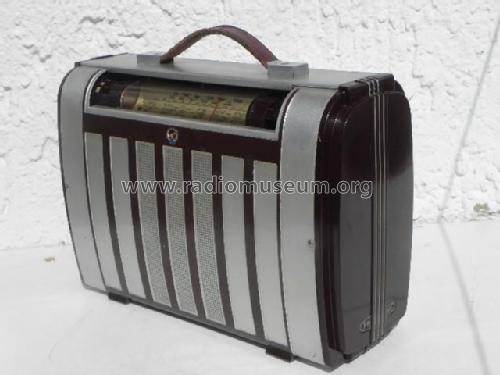

Nixe K610A; Blaupunkt Ideal, (ID = 1817829) Radio Nixe K610A; Blaupunkt Ideal, (ID = 2224292) Radio
Nixe K610A; Blaupunkt Ideal, (ID = 2224293) Radio Nixe K610A; Blaupunkt Ideal, (ID = 2224294) Radio
Use red slider bar for more.

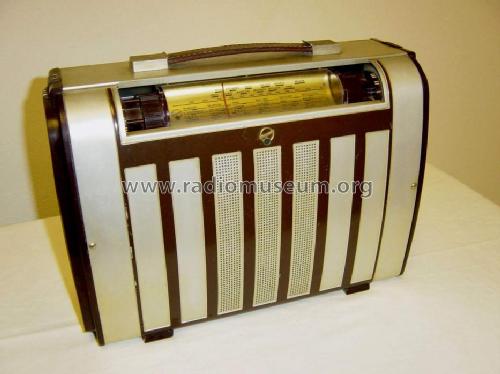

Nixe K610A; Blaupunkt Ideal, (ID = 105477) Radio
Blaupunkt Ideal,: Nixe K610A [Radio] ID = 105477 933x699
Select picture or schematic to display from thumbnails on the right and click for download.
For model Nixe K610A, Blaupunkt (Ideal), Berlin, später Hildesheim

Country:  Germany
Manufacturer / Brand:  Blaupunkt (Ideal), Berlin, später Hildesheim
alternative name

Ideal-Radiotelephon- und App-fabr. || Ideal-Werke AG; Berlin (ab 1934)
Brand
Rotstern
Year: 1950/1951 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: DK40 DF91 DF91 DAF91 DL92
Semiconductors (the count is only for transistors) Tr.Gl.=Metal-rectif.
Main principle Super-Heterodyne (Super in general); ZF/IF 473 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Line / Batteries (any type) / 110; 220 / 2 & 90 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 13 cm = 5.1 inch
Power out 0.25 W (unknown quality)
from Radiomuseum.org Model: Nixe K610A - Blaupunkt Ideal, Berlin,
Material Metal case
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 355 x 225 x 140 mm / 14 x 8.9 x 5.5 inch
Notes Material: Alu, Seitenteile Plastik Im Netzbetrieb Allstrom. Verwendung eines Urdox-Widerstandes im Heizkreis.
Net weight (2.2 lb = 1 kg) 6.7 kg / 14 lb 12.1 oz (14.758 lb)
Price in first year of sale 274.00 DM
Collectors' prices
Source of data Radiokatalog Band 1, Ernst Erb
Circuit diagram reference Lange Schaltungen der Funkindustrie, Buch 2
Picture reference Das Modell ist im «Radiokatalog» (Erb) abgebildet.
