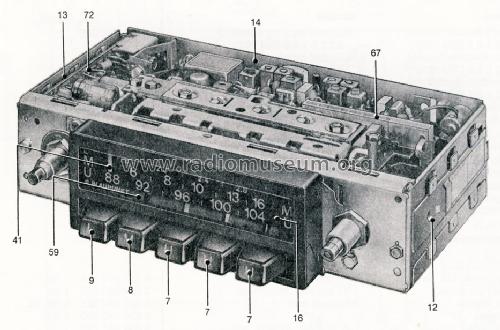

Nürnberg 7.635.630; Blaupunkt Ideal, (ID = 1571706) Car Radio
Blaupunkt Ideal,: Nürnberg 7.635.630 [Car Radio] ID = 1571706 933x617
Select picture or schematic to display from thumbnails on the right and click for download.
For model Nürnberg 7.635.630, Blaupunkt (Ideal), Berlin, später Hildesheim:
Q: Blaupunkt, Service-Unterlagen

Country:  Germany
Manufacturer / Brand:  Blaupunkt (Ideal), Berlin, später Hildesheim
alternative name

Ideal-Radiotelephon- und App-fabr. || Ideal-Werke AG; Berlin (ab 1934)
Brand
Rotstern
Year: 1975 Category: Car Radio, perhaps also + sound player/recorder
Semiconductors (the count is only for transistors) 12: AF106 BF255 BF540 BF255 BF254 BF254 BC238 BC238 BC238 BC328 BD433 BD434
Main principle Super-Heterodyne (Super in general); ZF/IF 455/10700 kHz
Tuned circuits 7 AM circuit(s)     10 FM circuit(s)
Wave bands Broadcast, Long Wave and FM or UHF.
Details
Power type and voltage Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt
Loudspeaker - This model requires external speaker(s).
Power out 5 W (unknown quality)
from Radiomuseum.org Model: Nürnberg 7.635.630 - Blaupunkt Ideal, Berlin,
Material Metal case
Shape Chassis only or for «building in»
Dimensions (WHD) 179 x 107 x 43 mm / 7 x 4.2 x 1.7 inch
Literature/Schematics (1) -- Original-techn. papers.

Model page created by Richard Winter. See "Data change" for further contributors.
