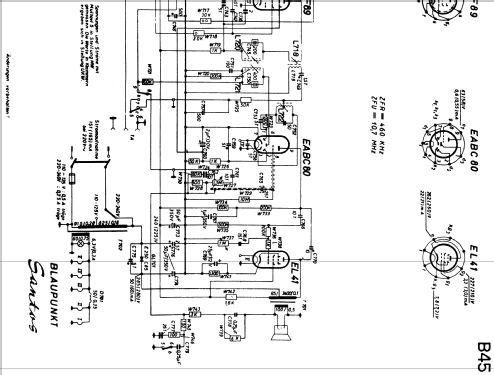

Select picture or schematic to display from thumbnails on the right and click for download.
For model Santos 2212, Blaupunkt (Ideal), Berlin, später Hildesheim:
This is a repair job I took on for Radiomuseum Ringsted Demark (..radiomuseum.dk/)

Country:  Germany
Manufacturer / Brand:  Blaupunkt (Ideal), Berlin, später Hildesheim
alternative name

Ideal-Radiotelephon- und App-fabr. || Ideal-Werke AG; Berlin (ab 1934)
Brand
Rotstern
Year: 1955/1956 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: ECC85 ECH81 EF89 EABC80 EL41
Main principle Super-Heterodyne (Super in general); ZF/IF 460/10700 kHz
Tuned circuits 6 AM circuit(s)     9 FM circuit(s)
Wave bands Broadcast, Long Wave and FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110-125; 220-240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 4 W (unknown quality)
from Radiomuseum.org Model: Santos 2212 - Blaupunkt Ideal, Berlin,
Material Bakelite case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 392 x 265 x 195 mm / 15.4 x 10.4 x 7.7 inch
Net weight (2.2 lb = 1 kg) 5.4 kg / 11 lb 14.3 oz (11.894 lb)
Price in first year of sale 199.00 DM
Collectors' prices
External source of data Erb
Source of data HdB d.Rdf-& Ferns-GrH 1955/56
