Stuttgart ab S 520010; Blaupunkt Ideal, (ID = 601613) Car Radio

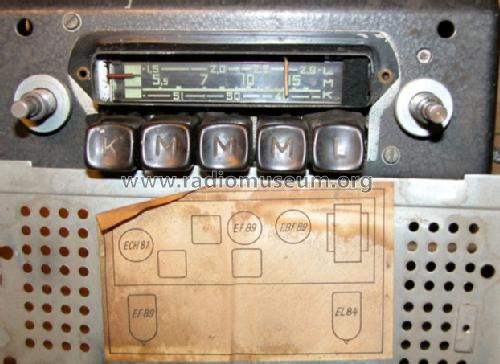

Blaupunkt Ideal,: Stuttgart ab S 520010 [Car Radio] ID = 601613 622x454
Select picture or schematic to display from thumbnails on the right and click for download.
For model Stuttgart ab S 520010, Blaupunkt (Ideal), Berlin, später Hildesheim

Country:  Germany
Manufacturer / Brand:  Blaupunkt (Ideal), Berlin, später Hildesheim
alternative name

Ideal-Radiotelephon- und App-fabr. || Ideal-Werke AG; Berlin (ab 1934)
Brand
Rotstern
Year: 1956–1958 Category: Car Radio, perhaps also + sound player/recorder
Valves / Tubes 5: EF89 ECH81 EF89 EBF89 EL84
Main principle Superheterodyne (common); ZF/IF 460 kHz
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Storage Battery for all (e.g. for car radios and amateur radios) / 6; 12 Volt
Loudspeaker - This model requires external speaker(s).
Power out 3.5 W (unknown quality)
from Radiomuseum.org Model: Stuttgart ab S 520010 - Blaupunkt Ideal, Berlin,
Material Metal case
Shape Chassis only or for «building in»
Notes Auch in Kat. 1957/58
Price in first year of sale 249.00 DM
External source of data Erb
Source of data HdB d.Rdf-& Ferns-GrH 1956/57
Circuit diagram reference Lange Schaltungen der Funkindustrie, Buch 2
