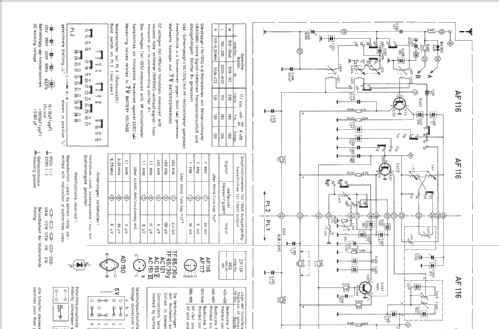

Stuttgart ATR ab U 840001; Blaupunkt Ideal, (ID = 169145) Car Radio

Stuttgart ATR ab U 840001; Blaupunkt Ideal, (ID = 169146) Car Radio

Stuttgart ATR ab U 840001; Blaupunkt Ideal, (ID = 169148) Car Radio

Stuttgart ATR ab U 840001; Blaupunkt Ideal, (ID = 169150) Car Radio

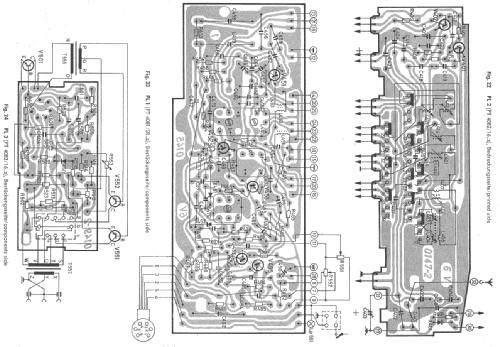

Stuttgart ATR ab U 840001; Blaupunkt Ideal, (ID = 169154) Car Radio

Stuttgart ATR ab U 840001; Blaupunkt Ideal, (ID = 169166) Car Radio

Stuttgart ATR ab U 840001; Blaupunkt Ideal, (ID = 2517028) Car Radio
Stuttgart ATR ab U 840001; Blaupunkt Ideal, (ID = 939668) Car Radio Stuttgart ATR ab U 840001; Blaupunkt Ideal, (ID = 939664) Car Radio
Stuttgart ATR ab U 840001; Blaupunkt Ideal, (ID = 939665) Car Radio Stuttgart ATR ab U 840001; Blaupunkt Ideal, (ID = 939666) Car Radio
Stuttgart ATR ab U 840001; Blaupunkt Ideal, (ID = 939667) Car Radio
Use red slider bar for more.
Stuttgart ATR ab U 840001; Blaupunkt Ideal, (ID = 939668) Car Radio
Blaupunkt Ideal,: Stuttgart ATR ab U 840001 [Car Radio] ID = 939668 933x365
Select picture or schematic to display from thumbnails on the right and click for download.
For model Stuttgart ATR ab U 840001, Blaupunkt (Ideal), Berlin, später Hildesheim

Country:  Germany
Manufacturer / Brand:  Blaupunkt (Ideal), Berlin, später Hildesheim
alternative name

Ideal-Radiotelephon- und App-fabr. || Ideal-Werke AG; Berlin (ab 1934)
Brand
Rotstern
Year: 1963/1964 Category: Car Radio, perhaps also + sound player/recorder
Semiconductors (the count is only for transistors) 10: AF116 AF116 AF116 AF117 AF117 TF65 TF65 AC121 AD150 AD150 E45C50 OA79 OA79 BA100
Main principle Superheterodyne (common); ZF/IF 452 or 460 kHz
Tuned circuits 8 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Storage Battery for all (e.g. for car radios and amateur radios) / 6; 12 Volt
Loudspeaker - This model requires external speaker(s).
Power out 4 W (unknown quality)
from Radiomuseum.org Model: Stuttgart ATR ab U 840001 - Blaupunkt Ideal, Berlin,
Material Metal case
Shape Chassis only or for «building in»
Dimensions (WHD) 183 x 60 x 147 mm / 7.2 x 2.4 x 5.8 inch
Notes Polarität umschaltbar.
Net weight (2.2 lb = 1 kg) 2.5 kg / 5 lb 8.1 oz (5.507 lb)
Price in first year of sale 265.00 DM
External source of data Erb
Source of data Handbuch VDRG 1963/1964
Literature/Schematics (1) -- Original-techn. papers.
