Stuttgart TR ab T 460001

Stuttgart TR ab T 460001; Blaupunkt Ideal, (ID = 939386) Car Radio

Stuttgart TR ab T 460001; Blaupunkt Ideal, (ID = 939387) Car Radio

Stuttgart TR ab T 460001; Blaupunkt Ideal, (ID = 939436) Car Radio

Stuttgart TR ab T 460001; Blaupunkt Ideal, (ID = 939437) Car Radio

Stuttgart TR ab T 460001; Blaupunkt Ideal, (ID = 939438) Car Radio

Stuttgart TR ab T 460001; Blaupunkt Ideal, (ID = 939439) Car Radio

Stuttgart TR ab T 460001; Blaupunkt Ideal, (ID = 939440) Car Radio
Stuttgart TR ab T 460001; Blaupunkt Ideal, (ID = 939646) Car Radio Stuttgart TR ab T 460001; Blaupunkt Ideal, (ID = 939643) Car Radio
Stuttgart TR ab T 460001; Blaupunkt Ideal, (ID = 939644) Car Radio Stuttgart TR ab T 460001; Blaupunkt Ideal, (ID = 939645) Car Radio

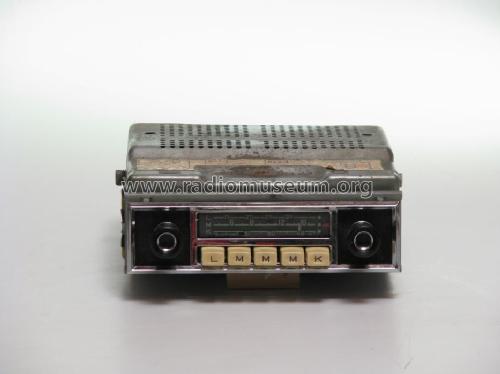

Stuttgart TR ab T 460001; Blaupunkt Ideal, (ID = 1369861) Car Radio
Use red slider bar for more.
Stuttgart TR ab T 460001; Blaupunkt Ideal, (ID = 939646) Car Radio
Blaupunkt Ideal,: Stuttgart TR ab T 460001 [Car Radio] ID = 939646 933x563
Select picture or schematic to display from thumbnails on the right and click for download.
For model Stuttgart TR ab T 460001, Blaupunkt (Ideal), Berlin, später Hildesheim

Country:  Germany
Manufacturer / Brand:  Blaupunkt (Ideal), Berlin, später Hildesheim
alternative name

Ideal-Radiotelephon- und App-fabr. || Ideal-Werke AG; Berlin (ab 1934)
Brand
Rotstern
Year: 1962/1963 Category: Car Radio, perhaps also + sound player/recorder
Valves / Tubes 4: EF89 ECH81 EBF89 ECF83
Semiconductors (the count is only for transistors) 3: TF80/30 TF80/30 TF78/30
Main principle Superhet with RF-stage; ZF/IF 460 kHz
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Storage Battery for all (e.g. for car radios and amateur radios) / 6/12 Volt
Loudspeaker - This model requires external speaker(s).
Power out 4 W (unknown quality)
from Radiomuseum.org Model: Stuttgart TR ab T 460001 - Blaupunkt Ideal, Berlin,
Material Metal case
Shape Chassis only or for «building in»
Dimensions (WHD) 185 x 83 x 170 mm / 7.3 x 3.3 x 6.7 inch
Notes NF Ausgangsleistung bei 12V 6 Watt, ZF bei besonderer Kennzeichnung 473 KHz
Net weight (2.2 lb = 1 kg) 2.8 kg / 6 lb 2.7 oz (6.167 lb)
Literature/Schematics (1) -- Original-techn. papers.

Model page created by Peter Roggenhofer † 25.4.18. See "Data change" for further contributors.
