Taranto 7.678.270 Seriew Z
Blaupunkt (Ideal), Berlin, später Hildesheim
- Country
- Germany
- Manufacturer / Brand
- Blaupunkt (Ideal), Berlin, später Hildesheim
- Year
- 1968/1969 ?
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 349299
-
- alternative name: Ideal-Radiotelephon- und App-fabr. || Ideal-Werke AG; Berlin (ab 1934)
- Brand: Rotstern
Bild aus dem SM

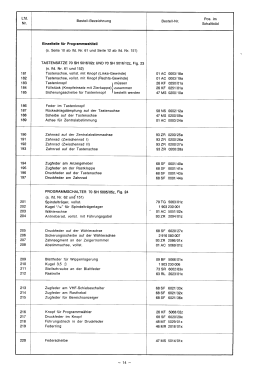

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 7
- Number of Transistors
- 14
- Semiconductors
- Main principle
- Superhet with RF-stage; ZF/IF 38900 kHz; 2 AF stage(s)
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Power type and voltage
- Alternating Current supply (AC) / 220 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
- Material
- Wooden case
- from Radiomuseum.org
- Model: Taranto 7.678.270 Seriew Z - Blaupunkt Ideal, Berlin,
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 714 x 466 x 390 mm / 28.1 x 18.3 x 15.4 inch
- Notes
-
Bildröhre A59-11W or A59-12W Weitere Technische Daten siehe SM1
- Net weight (2.2 lb = 1 kg)
- 25 kg / 55 lb 1.1 oz (55.066 lb)
- Literature/Schematics (1)
- -- Original-techn. papers.
- Author
- Model page created by Adrian Riesen. See "Data change" for further contributors.
