US3; Blaupunkt Ideal, (ID = 1256735) Radio

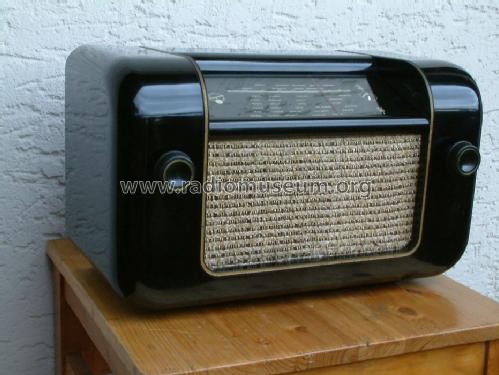

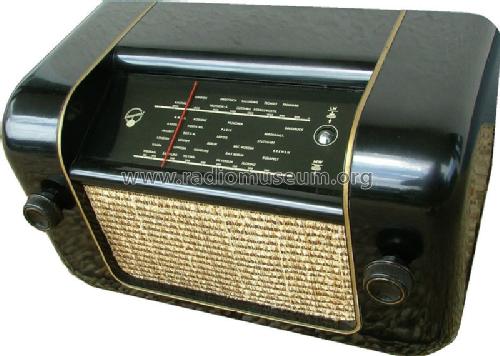

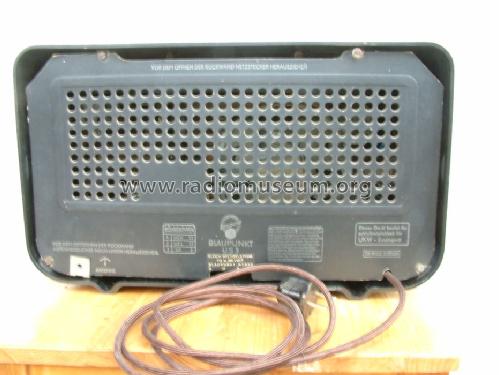

Blaupunkt Ideal,: US3 [Radio] ID = 1256735 800x571
Select picture or schematic to display from thumbnails on the right and click for download.
For model US3 LW MW, Blaupunkt (Ideal), Berlin, später Hildesheim:
Bild aus eBay 270795625194, helmi-video.

Country:  Germany
Manufacturer / Brand:  Blaupunkt (Ideal), Berlin, später Hildesheim
alternative name

Ideal-Radiotelephon- und App-fabr. || Ideal-Werke AG; Berlin (ab 1934)
Brand
Rotstern
Year: 1949/1950 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 3: UCH11 UEL11 UY2
Main principle Superheterodyne (common); ZF/IF 473 kHz
Tuned circuits 4 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage AC/DC-set / 110/220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 16 cm = 6.3 inch
Power out
from Radiomuseum.org Model: US3 [LW MW] - Blaupunkt Ideal, Berlin,
Material Bakelite case
Dimensions (WHD) 400 x 240 x 190 mm / 15.7 x 9.4 x 7.5 inch
Notes L-Abstimmung , Anschlußmöglichkeit für UKW-Zusatzgerät vorhanden.
Net weight (2.2 lb = 1 kg) 4.2 kg / 9 lb 4 oz (9.251 lb)
Price in first year of sale 185.00 DM
Source of data Katalog Weide, 1949/50. / Radiokatalog Band 1, Ernst Erb

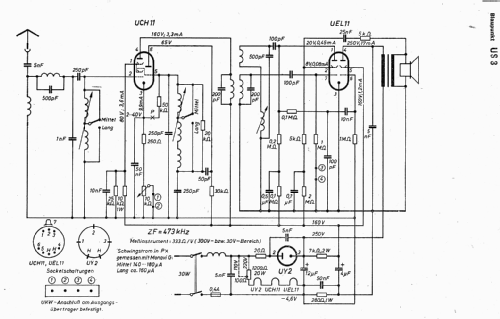

Circuit diagram reference Lange Schaltungen der Funkindustrie, Buch 2
