Verona 7.629.250

Verona 7.629.250; Blaupunkt Ideal, (ID = 293359) Radio

Verona 7.629.250; Blaupunkt Ideal, (ID = 293360) Radio

Verona 7.629.250; Blaupunkt Ideal, (ID = 293362) Radio

Verona 7.629.250; Blaupunkt Ideal, (ID = 293367) Radio

Verona 7.629.250; Blaupunkt Ideal, (ID = 293365) Radio
Verona 7.629.250; Blaupunkt Ideal, (ID = 328087) Radio Verona 7.629.250; Blaupunkt Ideal, (ID = 1557890) Radio
Verona 7.629.250; Blaupunkt Ideal, (ID = 1638937) Radio Verona 7.629.250; Blaupunkt Ideal, (ID = 1638938) Radio
Verona 7.629.250; Blaupunkt Ideal, (ID = 1638939) Radio Verona 7.629.250; Blaupunkt Ideal, (ID = 1638958) Radio
Verona 7.629.250; Blaupunkt Ideal, (ID = 1638959) Radio Verona 7.629.250; Blaupunkt Ideal, (ID = 1638960) Radio
Verona 7.629.250; Blaupunkt Ideal, (ID = 1638962) Radio Verona 7.629.250; Blaupunkt Ideal, (ID = 1638966) Radio
Use red slider bar for more.

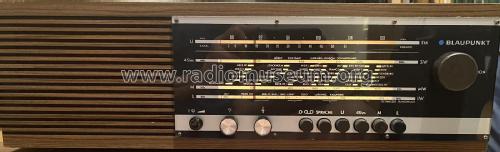

Verona 7.629.250; Blaupunkt Ideal, (ID = 328087) Radio
Blaupunkt Ideal,: Verona 7.629.250 [Radio] ID = 328087 489x219
Select picture or schematic to display from thumbnails on the right and click for download.
For model Verona 7.629.250, Blaupunkt (Ideal), Berlin, später Hildesheim

Country:  Germany
Manufacturer / Brand:  Blaupunkt (Ideal), Berlin, später Hildesheim
alternative name

Ideal-Radiotelephon- und App-fabr. || Ideal-Werke AG; Berlin (ab 1934)
Brand
Rotstern
Year: 1969/1970 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 11:
Main principle Super-Heterodyne (Super in general); ZF/IF 460/10700 kHz
Tuned circuits 7 AM circuit(s)     11 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110; 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 3 W (unknown quality)
from Radiomuseum.org Model: Verona 7.629.250 - Blaupunkt Ideal, Berlin,
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 627 x 132 x 180 mm / 24.7 x 5.2 x 7.1 inch
Notes Transistoren: AF106, AF121, 3× AF201C, BF343, BC108, SC151/VII, AC187K, AC188K, AD161; Dioden: 5× AA112, SFD037, BA124, ZD15.
Net weight (2.2 lb = 1 kg) 4 kg / 8 lb 13 oz (8.811 lb)
Collectors' prices
External source of data erb
Source of data Handbuch VDRG 1969/1970
