RR501B ; Bogen, David Co., (ID = 983448) Radio
Bogen, David Co.,: RR501B [Radio] ID = 983448 496x190
Select picture or schematic to display from thumbnails on the right and click for download.
For model RR501B, Bogen, David Co., Inc.; New York (NY):
aus ebay, #380327881728, Verkäufer sx28

Country:  United States of America (USA)
Manufacturer / Brand:  Bogen, David Co., Inc.; New York (NY)
Year: 1956 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 11: 12AT7 6BE6 6BA6 6AU6 6AL5 12AT7 6AV6 12AT7 6V6GT 6V6GT 5Y3GT
Main principle Superhet with RF-stage; ZF/IF 455/10700 kHz
Wave bands Broadcast (BC) and FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 105 - 125 Volt
Loudspeaker - This model requires external speaker(s).
Power out
from Radiomuseum.org Model: RR501B - Bogen, David Co., Inc.; New
Material Metal case
Shape Chassis only or for «building in»

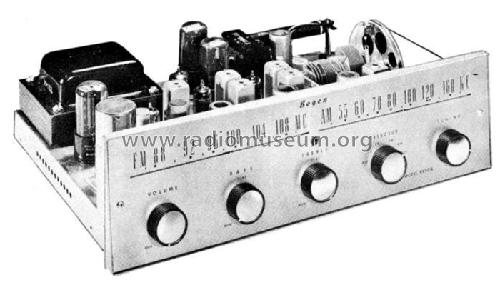

Notes The David Bogen Model RR501B is an AC operated 11 Tube AM-FM Tuner and Amplifier.
Literature/Schematics (1) Photofact Folder, Howard W. SAMS (Date 12-56, Set 339, Folder 3)

Model page created by Egon Penker. See "Data change" for further contributors.
