• Country
• Spain

• Manufacturer / Brand
• Bonvehi Radio; Barcelona

• Year
• 1955 ??

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 311461

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 3

• Valves / Tubes
• ECC83 EL84 EZ80

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Rec.Player+Audio.Amp+LS

• Power type and voltage
• Alternating Current supply (AC) / 125 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8 inch = 20.3 cm

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org

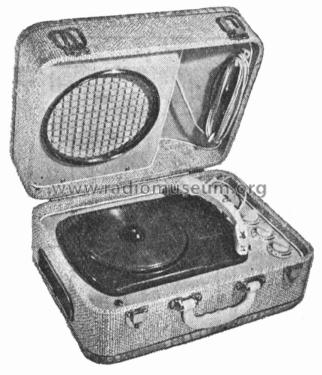

• Model: Amplificador Maleta Tocadiscos Hi.FI. 3 válvulas Plato Hector Jassmin - Bonvehi Radio; Barcelona

• Shape
• Tablemodel, low profile (big size).

• Notes

• Plato Hector modelo Jassmin

• Price in first year of sale
• 2,466.50 Pts

• Literature/Schematics (1)

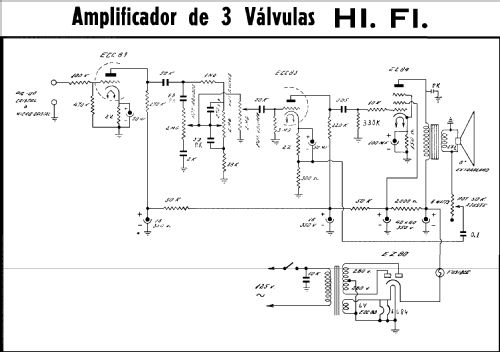

• -- Schematic

• Author
• Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
