• Country
• United States of America (USA)

• Manufacturer / Brand
• Borden Radio Company; Houston, TX

• Year
• 1999 ?

• Category
• Kit (Parts plus instruction) or building instructions only

• Radiomuseum.org ID
• 127570

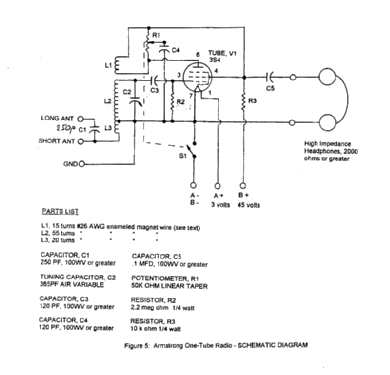

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 1

• Valves / Tubes
• 3S4

• Main principle
• TRF with regeneration

• Tuned circuits
• 1 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Dry Batteries / 3 & 45 Volt

• Loudspeaker
• - For headphones or amp.

• Material

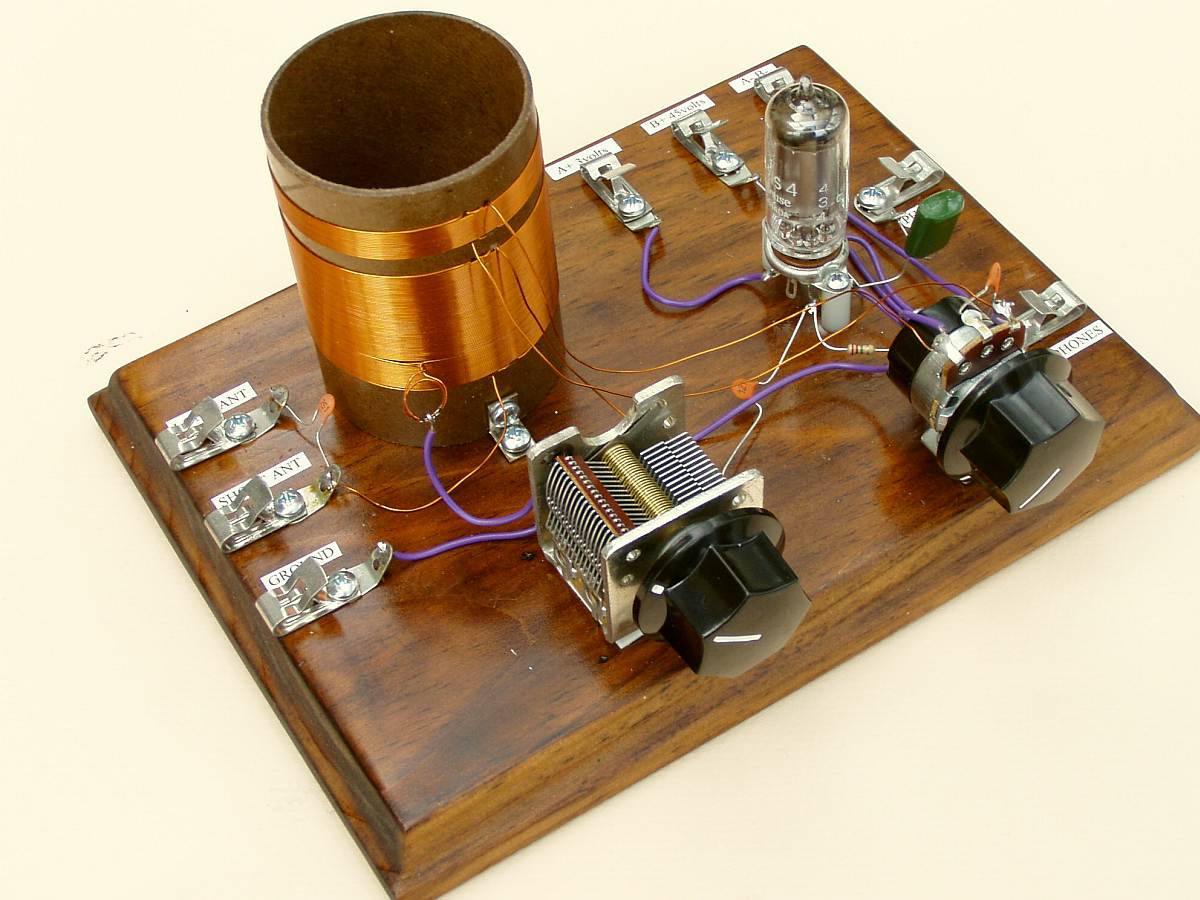

• Wooden case, TUBES VISIBLE.

• from Radiomuseum.org
• Model: Armstrong One-Tube Radio - Borden Radio Company; Houston,

• Shape
• Design Radio or Novelty / Gadget - fancy or unusual shape.

• Dimensions (WHD)
• 205 x 95 x 150 mm / 8.1 x 3.7 x 5.9 inch

• Notes
• Der Empfänger funktioniert an einer Antenne von ca. 10 Metern bereits mit 18 Volt Anodenspannung mit grosser Empfindlichkeit und Trennschärfe. Baujahr 2002. Aber der Name "Armstrong" ist irreführend. Es ist alles andere als eine Armstrong-Schaltung.

• Net weight (2.2 lb = 1 kg)
• 0.4 kg / 0 lb 14.1 oz (0.881 lb)

• Price in first year of sale
• 53.00 $

• Source of data
• - - Data from my own collection

• Author
• Model page created by Felix Schaffhauser. See "Data change" for further contributors.
