For model 5651W, Brandt (Roland Brandt); Berlin

Country:  Germany
Manufacturer / Brand:  Brandt (Roland Brandt); Berlin
alternative name

Motorfahrzeug-Fabrik
Year: 1950/1951 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: ECH42 EAF42 EL41 AZ41 EM11
Main principle Super-Heterodyne (Super in general); ZF/IF 468 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Ready for FM, has Broadcast, Long Wave, Short wave.
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 18 cm = 7.1 inch
Power out
from Radiomuseum.org Model: 5651W - Brandt Roland Brandt; Berlin
Material Bakelite case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 455 x 285 x 200 mm / 17.9 x 11.2 x 7.9 inch
Notes

Passender UKW-Pendler ist der Brandt UKW-Einsatz PR-E mit Röhre ECF12.

Net weight (2.2 lb = 1 kg) 6.7 kg / 14 lb 12.1 oz (14.758 lb)
Price in first year of sale 195.00 DM
Collectors' prices
Source of data Kat.d. Rundf.Gr.Handel 1950/51 / Radiokatalog Band 1, Ernst Erb

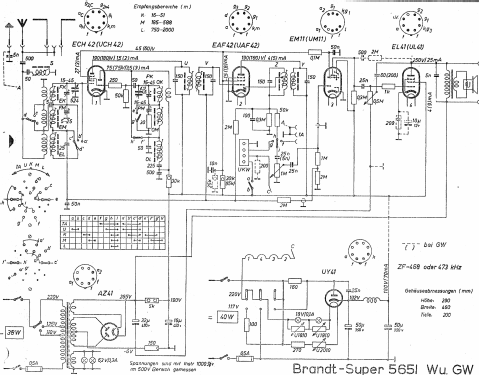

Circuit diagram reference Lange Schaltungen der Funkindustrie, Buch 2
Mentioned in Funkschau (5015)
Picture reference Das Modell ist im «Radiokatalog» (Erb) abgebildet, das Copyright liegt beim Deutschen Rundfunk Museum (DRM), Berlin und beim Archiv-Verlag (AV). Sie finden eine grössere Abbildung und Schaltbild etc. bei der Loseblatt-Sammlung von DRM/AV.


All listed radios etc. from Brandt (Roland Brandt); Berlin
Here you find 234 models, 164 with images and 132 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
