Jubilar 40WK

Jubilar 40WK; Brandt Roland Brandt (ID = 272268) Radio

Jubilar 40WK; Brandt Roland Brandt (ID = 362444) Radio
Jubilar 40WK; Brandt Roland Brandt (ID = 222852) Radio Jubilar 40WK; Brandt Roland Brandt (ID = 3425) Radio

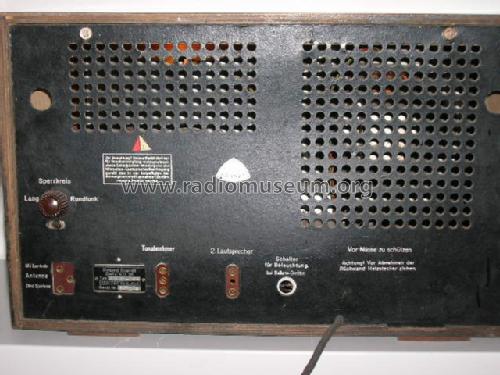

Jubilar 40WK; Brandt Roland Brandt (ID = 222854) Radio Jubilar 40WK; Brandt Roland Brandt (ID = 707777) Radio
Jubilar 40WK; Brandt Roland Brandt (ID = 3424) Radio Jubilar 40WK; Brandt Roland Brandt (ID = 222853) Radio
Jubilar 40WK; Brandt Roland Brandt (ID = 222855) Radio Jubilar 40WK; Brandt Roland Brandt (ID = 222856) Radio
Jubilar 40WK; Brandt Roland Brandt (ID = 1531426) Radio Jubilar 40WK; Brandt Roland Brandt (ID = 1531429) Radio
Use red slider bar for more.
Jubilar 40WK; Brandt Roland Brandt (ID = 222852) Radio

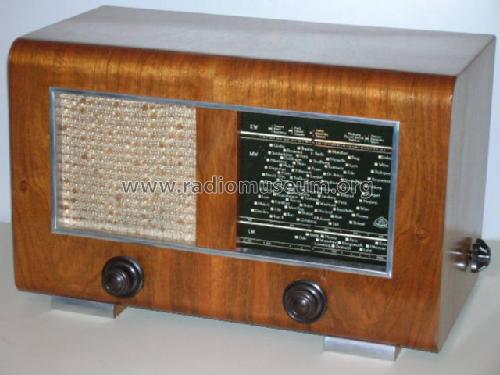

Brandt Roland Brandt: Jubilar 40WK [Radio] ID = 222852 640x480
Select picture or schematic to display from thumbnails on the right and click for download.
For model Jubilar 40WK, Brandt (Roland Brandt); Berlin

Country:  Germany
Manufacturer / Brand:  Brandt (Roland Brandt); Berlin
alternative name

Motorfahrzeug-Fabrik
Year: 1939/1940 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 3: EF11 ECL11 AZ11
Main principle TRF with regeneration; 1 Special; 1 AF stage(s)
Tuned circuits 2 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110-220 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 19 cm = 7.5 inch
Power out
from Radiomuseum.org Model: Jubilar 40WK - Brandt Roland Brandt; Berlin
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 475 x 295 x 240 mm / 18.7 x 11.6 x 9.4 inch
Notes Dial lamp 6,3 V/0,3 A
Net weight (2.2 lb = 1 kg) 8.5 kg / 18 lb 11.6 oz (18.722 lb)
Price in first year of sale 145.00 RM
Source of data Handbuch WDRG 1939 / Radiokatalog Band 1, Ernst Erb

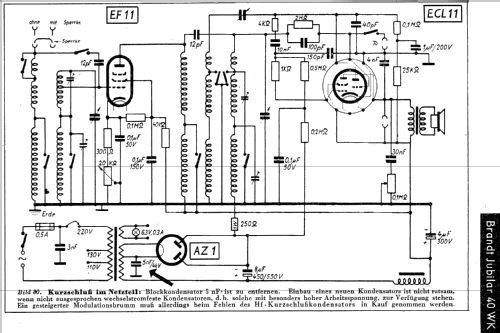

Circuit diagram reference Lange+Schenk+FS-Röhrenbestückung
Mentioned in Historische Radios (1-5) = zur Verknüpfung mit Modellseiten
Picture reference Das Modell ist im «Radiokatalog» (Erb) abgebildet.


All listed radios etc. from Brandt (Roland Brandt); Berlin
