6741W

6741W; Braun; Frankfurt (ID = 273406) Radio

6741W; Braun; Frankfurt (ID = 8184) Radio

6741W; Braun; Frankfurt (ID = 893156) Radio
Use red slider bar for more.
6741W; Braun; Frankfurt (ID = 273406) Radio

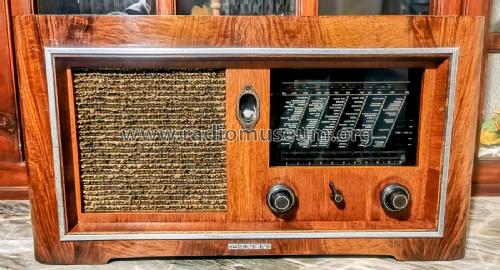

Select picture or schematic to display from thumbnails on the right and click for download.

Country:  Germany
Manufacturer / Brand:  Braun; Frankfurt
Year: 1940/1941 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: ECH11 EBF11 EF11 EL11 EM11 AZ11
Main principle Superheterodyne (common); ZF/IF 488 kHz
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast, Long Wave and 2 x Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110-240 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: 6741W - Braun; Frankfurt
Source of data Radiokatalog Band 1, Ernst Erb
Circuit diagram reference Lange + FS-Bestückungstabellen


All listed radios etc. from Braun; Frankfurt
Here you find 1040 models, 904 with images and 641 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
