• Country
• Germany

• Manufacturer / Brand
• Braun; Frankfurt

• Year
• 1962 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 283892

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 9

• Valves / Tubes
• ECC85 ECH81 EF89 EBF89 EM84 ECC83 ECC83 EL84 EL84

• Main principle
• Superheterodyne (common)

• Tuned circuits
• 8 AM circuit(s)     12 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Details
• Record Player (not changer)

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 150; 220; 240 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 10 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org

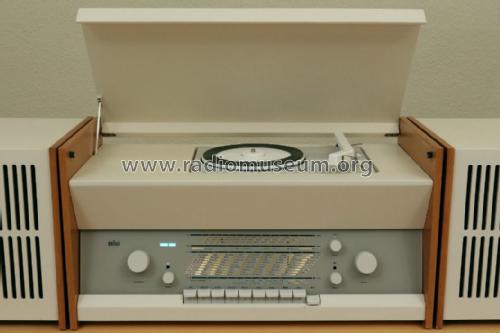

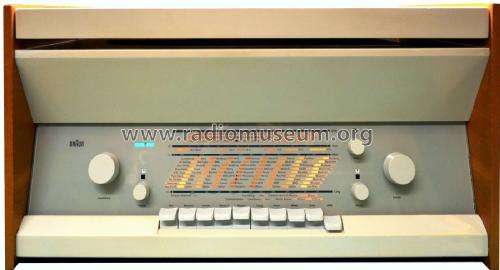

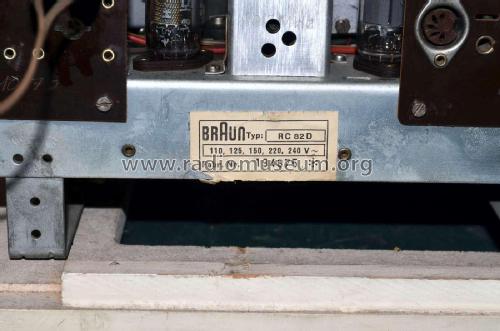

• Model: Atelier 11 Ch= RC82D - Braun; Frankfurt

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 583 x 293 x 290 mm / 23 x 11.5 x 11.4 inch

• Notes

• Im Unterschied zu RC82C Gegenkopplung 10nF/10M in der ersten NF-Stufe.

• Net weight (2.2 lb = 1 kg)
• 15 kg / 33 lb 0.6 oz (33.04 lb)

• Author
• Model page created by Wolfgang Steeger. See "Data change" for further contributors.
