Atelier 2 Ch= RC9

Atelier 2 Ch= RC9; Braun; Frankfurt (ID = 38967) Radio

Atelier 2 Ch= RC9; Braun; Frankfurt (ID = 1578214) Radio

Atelier 2 Ch= RC9; Braun; Frankfurt (ID = 1857676) Radio

Atelier 2 Ch= RC9; Braun; Frankfurt (ID = 1857677) Radio
Atelier 2 Ch= RC9; Braun; Frankfurt (ID = 25052) Radio Atelier 2 Ch= RC9; Braun; Frankfurt (ID = 25053) Radio
Atelier 2 Ch= RC9; Braun; Frankfurt (ID = 181488) Radio Atelier 2 Ch= RC9; Braun; Frankfurt (ID = 25051) Radio
Atelier 2 Ch= RC9; Braun; Frankfurt (ID = 181490) Radio Atelier 2 Ch= RC9; Braun; Frankfurt (ID = 181491) Radio
Atelier 2 Ch= RC9; Braun; Frankfurt (ID = 591628) Radio Atelier 2 Ch= RC9; Braun; Frankfurt (ID = 591629) Radio
Atelier 2 Ch= RC9; Braun; Frankfurt (ID = 591630) Radio Atelier 2 Ch= RC9; Braun; Frankfurt (ID = 591632) Radio
Use red slider bar for more.
Atelier 2 Ch= RC9; Braun; Frankfurt (ID = 25052) Radio

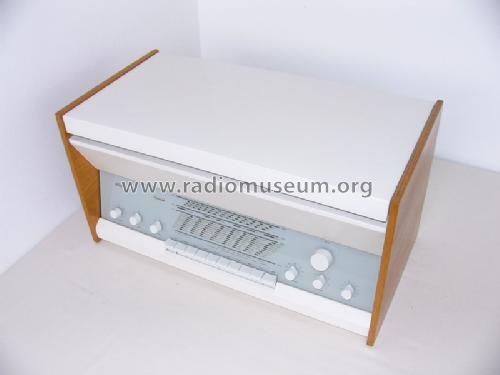

Braun; Frankfurt: Atelier 2 Ch= RC9 [Radio] ID = 25052 329x223
Select picture or schematic to display from thumbnails on the right and click for download.
For model Atelier 2 Ch= RC9, Braun; Frankfurt:
ebay

Country:  Germany
Manufacturer / Brand:  Braun; Frankfurt
Year: 1961–1965 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 11: ECC85 ECH81 EF89 EBF89 EM84 ECC83 ECC83 EC92 EC92 ELL80 ELL80
Main principle Superheterodyne (common); ZF/IF 460/10700 kHz
Tuned circuits 8 AM circuit(s)     12 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.

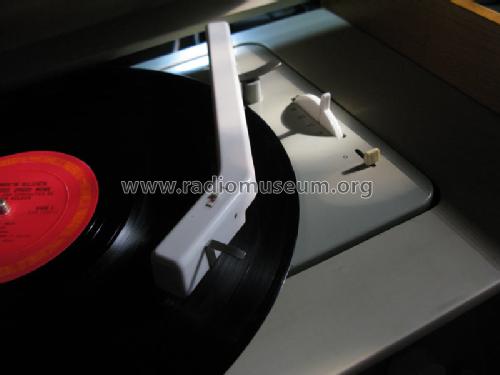

Details Record Player (not changer)
Power type and voltage Alternating Current supply (AC) / 110; 125; 150; 220; 240 Volt
Loudspeaker - This model requires external speaker(s).
Power out
from Radiomuseum.org Model: Atelier 2 Ch= RC9 - Braun; Frankfurt
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 583 x 293 x 290 mm / 23 x 11.5 x 11.4 inch
Notes

Dioden: 2× OA79, BA100.
Stereo-Decoder TD901 (75,- DM) nachrüstbar; Stereo-NF-Verstärker mit zwei Gegentakt-Endstufen je 7 W;
Phono-Chassis = PC4.

Wellenbereiche:

 LW 145 .. . 350 kHz     MW 515...1640 kHz     KW 5...16 MHz      UKW 87...101 MHz

Net weight (2.2 lb = 1 kg) 15 kg / 33 lb 0.6 oz (33.04 lb)
Price in first year of sale 645.00 DM
Source of data HdB d.Rdf-& Ferns-GrH 1961/62 / Radiokatalog Band 1, Ernst Erb
Mentioned in Handbuch VDRG 1964/1965
Literature/Schematics (1) -- Original-techn. papers.


All listed radios etc. from Braun; Frankfurt
