Audio 1M Ch= TC40; Braun; Frankfurt (ID = 244052) Radio
Braun; Frankfurt: Audio 1M Ch= TC40 [Radio] ID = 244052 800x600
Select picture or schematic to display from thumbnails on the right and click for download.

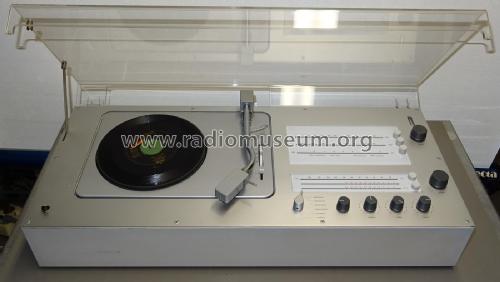

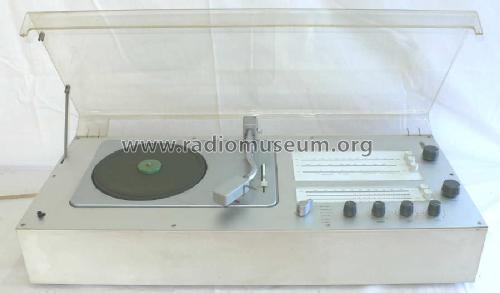

For model Audio 1M Ch= TC40, Braun; Frankfurt

Country:  Germany
Manufacturer / Brand:  Braun; Frankfurt
Year: 1962–1964 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 29: AF102 AF124 AF125 OC71 AF126 AF121 OC45 AC151 AC151r TF66 AC152 AD130 BA110 OA70 RL232g AA119 SZ9 OY5061 BYY33
Main principle Superheterodyne (common); ZF/IF 460/10700 kHz
Tuned circuits 8 AM circuit(s)     12 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details Record Player (not changer)
Power type and voltage Alternating Current supply (AC) / 115; 125; 160; 220; 240 Volt
Loudspeaker - This model requires external speaker(s).
Power out 14 W (28 W max.)
from Radiomuseum.org Model: Audio 1M Ch= TC40 - Braun; Frankfurt
Material Metal case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 650 x 280 x 160 mm / 25.6 x 11 x 6.3 inch
Notes

Transistoren: AF102, AF124, 3× AF125, OC71, 3× AF126, 6× TF65/30, 4× AD130, 6× TF66/30, 2× AC152.

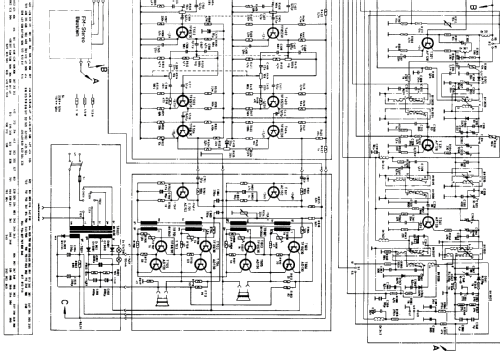

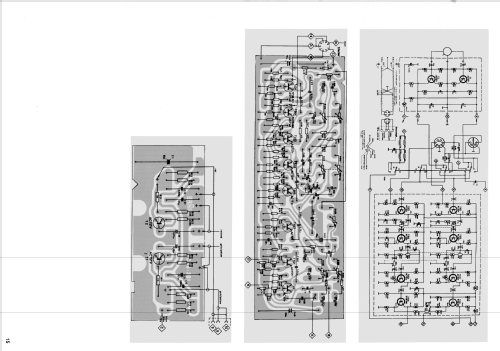

Rundfunk-Chassis = TC40, Stereo-Decoder nachrüstbar, Stereo-NF-Verstärker mit 2 Endstufen je 14 W (Musik);

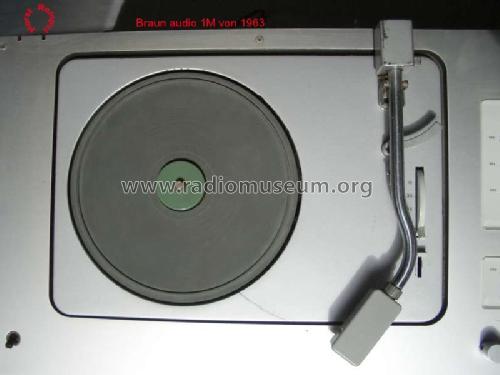

Phono-Chassis = PC45 mit magnetischem Tonabnehmersystem Shure M77 (Umrüstung auf anderes Shure System ist möglich, z.B. M33 oder M44-7).

Bestückung:

  • wie Audio 1  +  zus. 2x AC151r für den Entzerrer-Vorverstärker,
  • Stereo-Decoder: zus. 1x OC 45, 2x AC151, 2x AA 119, 2x AA113,
  • insgesamt: 32 Ge-Transistoren, 11 Ge-Dioden, 4 Si-Dioden, 1 Z-Diode.

Wellenbereiche:
UKW  87 . . 108 MHz     KW 5,8 ... 13 MHz     MW 512…1650 kHz       LW 145…340 kHz

Net weight (2.2 lb = 1 kg) 16.5 kg / 36 lb 5.5 oz (36.344 lb)
Price in first year of sale 1'250.00 DM
External source of data Erb
Source of data Handbuch VDRG 1963/1964

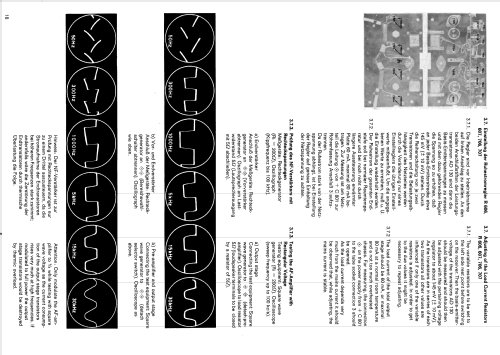

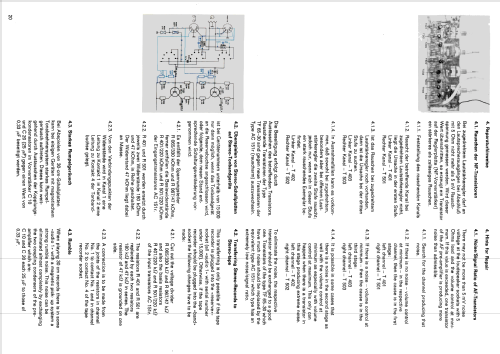

Mentioned in -- Original-techn. papers.
