Braun Super 560W o. mag. Auge

Braun Super 560W; Braun; Frankfurt (ID = 1014042) Radio

Braun Super 560W; Braun; Frankfurt (ID = 11565) Radio
Braun Super 560W; Braun; Frankfurt (ID = 1626411) Radio Braun Super 560W; Braun; Frankfurt (ID = 208258) Radio
Braun Super 560W; Braun; Frankfurt (ID = 208259) Radio Braun Super 560W; Braun; Frankfurt (ID = 450918) Radio
Braun Super 560W; Braun; Frankfurt (ID = 1604084) Radio Braun Super 560W; Braun; Frankfurt (ID = 1626412) Radio
Braun Super 560W; Braun; Frankfurt (ID = 1626413) Radio Braun Super 560W; Braun; Frankfurt (ID = 2490493) Radio
Braun Super 560W; Braun; Frankfurt (ID = 2490494) Radio
Use red slider bar for more.
Braun Super 560W; Braun; Frankfurt (ID = 1626411) Radio

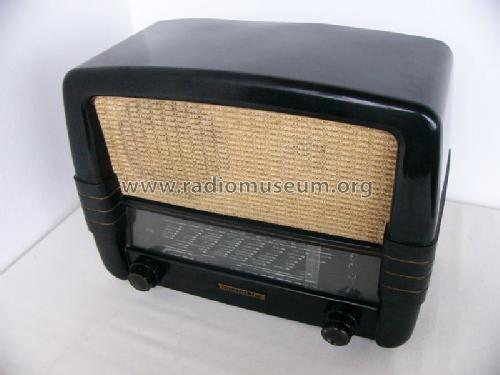

Braun; Frankfurt: Braun Super 560W [Radio] ID = 1626411 800x600
Select picture or schematic to display from thumbnails on the right and click for download.
For model Braun Super 560W o. mag. Auge, Braun; Frankfurt

Country:  Germany
Manufacturer / Brand:  Braun; Frankfurt
Year: 1950/1951 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: ECH42 EAF42 EAF42 EL41 AZ41
Main principle Superheterodyne (common); ZF/IF 473 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 220; 240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 17 cm = 6.7 inch
Power out
from Radiomuseum.org Model: Braun Super 560W [o. mag. Auge] - Braun; Frankfurt
Material Bakelite case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 418 x 307 x 200 mm / 16.5 x 12.1 x 7.9 inch
Notes ohne Mag.Auge. Bei der einfachen Suche bitte nie den Hersteller/Marke eingeben. Hier haben wir dies nur zu dem Zweck mit einbezogen, dass Sie das wissen können (Blaue Info-Knöpfe klicken!). Braun Super 560 W schreiben wir sonst nur 560W oder 560 W ohne Braun oder Super.
Net weight (2.2 lb = 1 kg) 7 kg / 15 lb 6.7 oz (15.419 lb)
Source of data Kat.d. Rundf.Gr.Handel 1950/51 / Radiokatalog Band 1, Ernst Erb
Circuit diagram reference Lange Schaltungen der Funkindustrie, Buch 2
Mentioned in Funkschau (5015)
