Atelier C1
Braun; Frankfurt
- Country
- Germany
- Manufacturer / Brand
- Braun; Frankfurt
- Year
- 1980–1982
- Category
- Sound/Video Recorder and/or Player
- Radiomuseum.org ID
- 143212

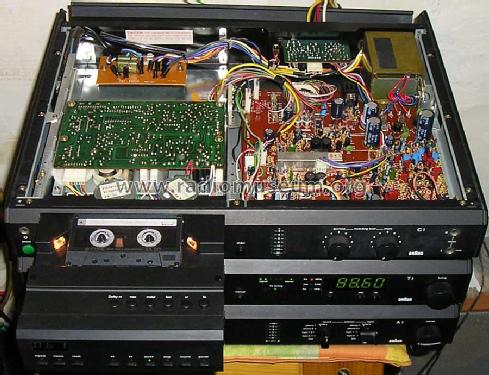

Cassettenwagen ausgefahren - im Betrieb
Geräte stehen im Technoseum in Mannheim.

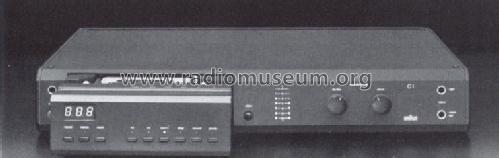

Original prospekt in 1980.
Originalprospekt Braun Geräteprogram 80/81

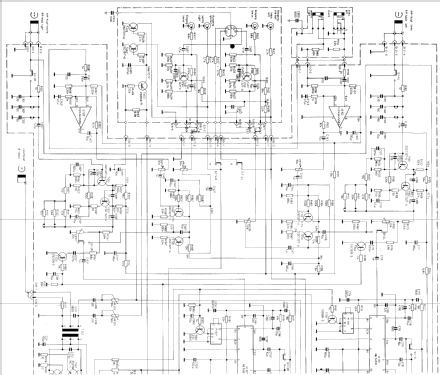

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 49
- Semiconductors
- 2SC1327 2SC1317 2SA564 2SC828 2SD592 2SA719 2SC1384 2SD880 2SC2594 2SD893 2SA1020 MA150 ON1122 SLP144B LN513 NJM4558 NE646 LA4170 IR2E02 TC5054 CD4013 CD4049 TC9121 AN6250 CD4071
- Wave bands
- - without
- Details
- Cassette-Recorder or -Player
- Power type and voltage
- Alternating Current supply (AC) / 220 Volt
- Loudspeaker
- - For headphones or amp.
- Material
- Metal case
- from Radiomuseum.org
- Model: Atelier C1 - Braun; Frankfurt
- Shape
- Book-shelf unit.
- Dimensions (WHD)
- 445 x 70 x 375 mm / 17.5 x 2.8 x 14.8 inch
- Notes
-
HiFi-Cassettendeck mit Cassettenwagen (Slider), Sebdust-Tonkopf, lamelliert.
30-17000 Hz (Metall), Dolby-NR.
Gehäusefarbe Schwarz (1980) und ab Okt. 1981 auch Kristallgrau.
Halbleiterliste: nur einmal je Typ.
- Net weight (2.2 lb = 1 kg)
- 8.3 kg / 18 lb 4.5 oz (18.282 lb)
- Price in first year of sale
- 848.00 DM
- Source of data
- -- Original prospect or advert
- Author
- Model page created by Franz Scharner. See "Data change" for further contributors.
