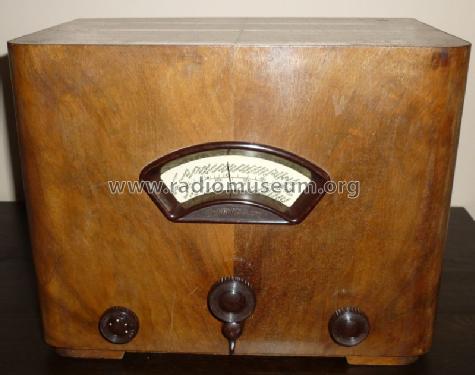

Cosmophon 444W

Braun; Frankfurt

  • Year
  • 1932
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 1142

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 4
  • Main principle
  • TRF with regeneration; 1 Special; 1 AF stage(s)
  • Tuned circuits
  • 2 AM circuit(s)
  • Wave bands
  • Wave Bands given in the notes.
  • Power type and voltage
  • Alternating Current supply (AC) / 110-240 Volt
  • Loudspeaker
  • - This model requires external speaker(s).
  • from Radiomuseum.org
  • Model: Cosmophon 444W - Braun; Frankfurt
  • Dimensions (WHD)
  • 300 x 235 x 210 mm / 11.8 x 9.3 x 8.3 inch
  • Notes
  • Ch=333+777
  • Net weight (2.2 lb = 1 kg)
  • 4.8 kg / 10 lb 9.2 oz (10.573 lb)
  • Price in first year of sale
  • 96.00 RM
  • Source of data
  • Radiokatalog Band 1, Ernst Erb
  • Circuit diagram reference
  • Lange + FS-Bestückungstabellen

 Collections | Museums | Literature

Collections

The model Cosmophon is part of the collections of the following members.

Museums

The model Cosmophon can be seen in the following museums.

 Forum

Forum contributions about this model: Braun; Frankfurt: Cosmophon 444W

Threads: 1 | Posts: 2

Liebe Radiofreunde

Ich habe dieses Radio und kann es nicht genau einordnen

Der cosmophon braun 333 w (google) hat die gleichen Bakeliteinsätze, Knöpfe und Lautsprecherrahmen und vermutlich auch das selbe Chassis. jedoch alles in einem Gehäuse und Kathedralenform.

Meine Vermutung geht in Richtung  Braun cosmophon 444W oder 777

Ich würde gern das Model anlegen...aber wo ?

Habe ein paar Bilder angehängt

Nette Grüsse

Alfons Lammers

Attachments

Alfons Lammers, 17.Apr.12

Weitere Posts (2) zu diesem Thema.
