Cosmophon 777C

Cosmophon 777C; Braun; Frankfurt (ID = 6159) Radio

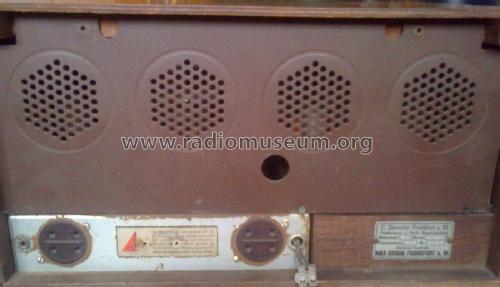

Cosmophon 777C; Braun; Frankfurt (ID = 1827012) Radio Cosmophon 777C; Braun; Frankfurt (ID = 1827014) Radio

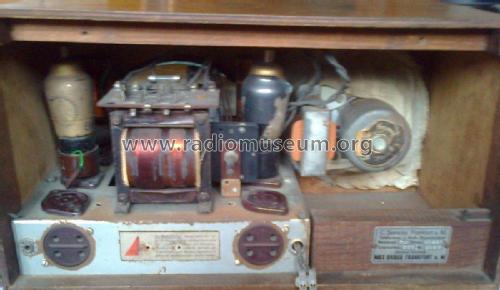

Cosmophon 777C; Braun; Frankfurt (ID = 1827016) Radio Cosmophon 777C; Braun; Frankfurt (ID = 1827018) Radio
Use red slider bar for more.

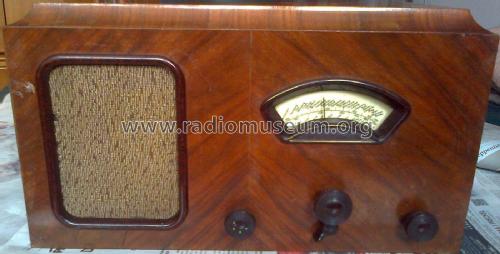

Cosmophon 777C; Braun; Frankfurt (ID = 1827012) Radio
Braun; Frankfurt: Cosmophon 777C [Radio] ID = 1827012 1400x713
Select picture or schematic to display from thumbnails on the right and click for download.
For model Cosmophon 777C, Braun; Frankfurt:
Mit Genehmigung des Vorbesitzers

Country:  Germany
Manufacturer / Brand:  Braun; Frankfurt
Year: 1933/1934 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: RENS1204 RENS1204 RES164 or RES374 RGN564
Main principle TRF with regeneration; 1 Special; 1 AF stage(s)
Tuned circuits 2 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details Record Player (perh.Changer)
Power type and voltage Alternating Current supply (AC) / 110-240 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: Cosmophon 777C - Braun; Frankfurt
Material Wooden case
Shape Tablemodel, high profile (upright - NOT Cathedral nor decorative).
Notes

Ch= Cosmophon 333W und 444W

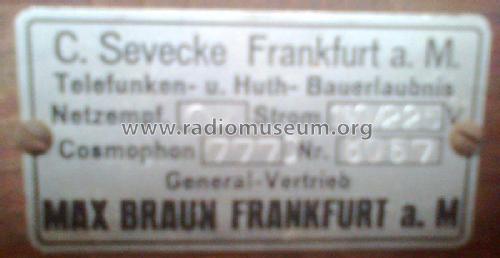

Siehe auch Carl Sevecke, Frankfurt a.M.-Höchst, Cosmophon 777C

Source of data Radiokatalog Band 1, Ernst Erb
Circuit diagram reference Lange-Nowisch
