HM6-81 Stereo

HM6-81 Stereo; Braun; Frankfurt (ID = 617813) Radio HM6-81 Stereo; Braun; Frankfurt (ID = 617815) Radio
HM6-81 Stereo; Braun; Frankfurt (ID = 617814) Radio HM6-81 Stereo; Braun; Frankfurt (ID = 330369) Radio
HM6-81 Stereo; Braun; Frankfurt (ID = 490669) Radio HM6-81 Stereo; Braun; Frankfurt (ID = 617816) Radio
HM6-81 Stereo; Braun; Frankfurt (ID = 617817) Radio HM6-81 Stereo; Braun; Frankfurt (ID = 661534) Radio
HM6-81 Stereo; Braun; Frankfurt (ID = 661536) Radio HM6-81 Stereo; Braun; Frankfurt (ID = 661537) Radio
Use red slider bar for more.

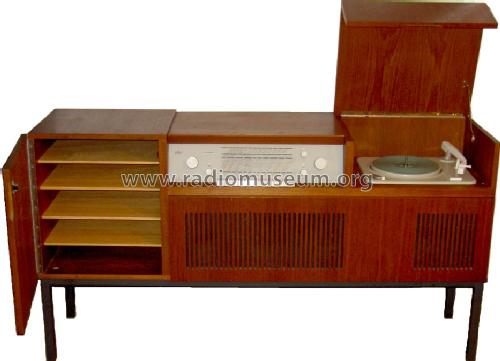

HM6-81 Stereo; Braun; Frankfurt (ID = 617813) Radio
Braun; Frankfurt: HM6-81 Stereo [Radio] ID = 617813 933x674
Select picture or schematic to display from thumbnails on the right and click for download.
For model HM6-81 Stereo, Braun; Frankfurt

Country:  Germany
Manufacturer / Brand:  Braun; Frankfurt
Year: 1960/1961 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 9: ECC85 ECH81 EF89 EBF89 EM84 ECC83 ECC83 EL84 EL84
Main principle Superheterodyne (common); ZF/IF 460/10700 kHz
Tuned circuits 6 AM circuit(s)     12 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details Changer (Record changer)
Power type and voltage Alternating Current supply (AC) / 110; 125; 150; 220; 250 Volt
Loudspeaker 3 Loudspeakers
Power out
from Radiomuseum.org Model: HM6-81 Stereo - Braun; Frankfurt
Material Wooden case
Shape Console with Push Buttons.
Dimensions (WHD) 1330 x 715 x 380 mm / 52.4 x 28.1 x 15 inch
Notes Stereo-NF-Verstärker mit 2 Endstufen je 6 W; Phono-Chassis = Elac Miracord 90SK96. Rundfunkchassis RC81A.
Net weight (2.2 lb = 1 kg) 43.8 kg / 96 lb 7.6 oz (96.476 lb)
Price in first year of sale 990.00 DM
Source of data HdB d.Rdf-& Ferns-GrH 1960/61

Model page created by Bernd P. Kieck. See "Data change" for further contributors.
