Lautsprecherbox L1
Use red slider bar for more.

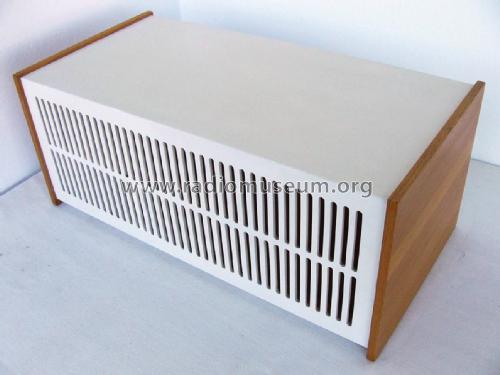

Braun; Frankfurt: Lautsprecherbox L1 [Speaker-P] ID = 2121650 1296x972
Select picture or schematic to display from thumbnails on the right and click for download.
|
|
||||
| Year: 1957–1961 | Category: Loudspeaker, headphone or earphone |
| Wave bands | - without |
|---|---|
| Details | |
| Power type and voltage | No Power needed |
| Loudspeaker | 2 Loudspeakers |
| Power out | |
| from Radiomuseum.org | Model: Lautsprecherbox L1 - Braun; Frankfurt |
| Material | Wooden case |
| Shape | Book-shelf unit. |
| Dimensions (WHD) | 585 x 238 x 290 mm / 23 x 9.4 x 11.4 inch |

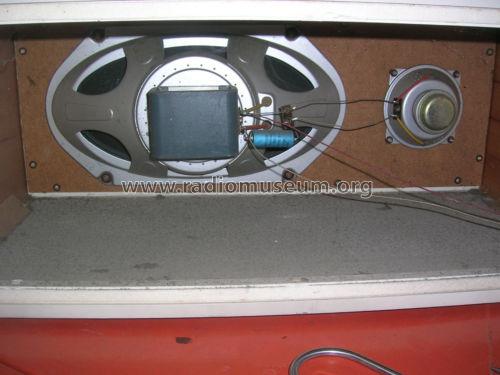

| Notes | Die Braun Lautsprecherbox L1 wurde passend zum Steuergerät Atelier 1 angeboten. L1 enthält einen 34x18 cm Isophon Konzertlautsprecher P1834/25/90F und einen 10 cm Isophon Hochtonlautsprecher HM10/13/70F. Die Belastbarkeit beträgt 6 Watt. Preisangabe ab Katalog 1958/59. |
| Net weight (2.2 lb = 1 kg) | 5.3 kg / 11 lb 10.8 oz (11.674 lb) |
| Price in first year of sale | 110.00 DM |
| Source of data | -- Original-techn. papers. |
| Mentioned in | HdB d.Rdf-& Ferns-GrH 1957/58 |

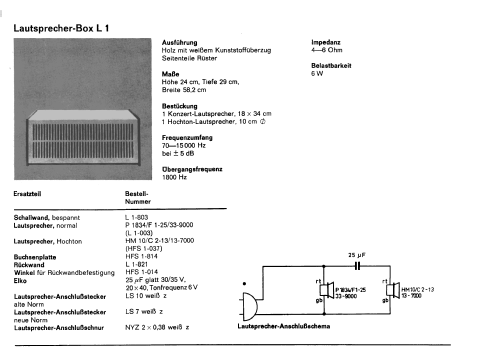

| Literature/Schematics (1) | HdB d.Rdf-& Ferns-GrH 1958/59 (und 1959/60, 1960/61) |
| Literature/Schematics (2) | Hdb. für Rundfunk, Fernsehen, Phono (RFP) 1959/60, Thiele Helmstedt |
Model page created by Bernhard Nagel. See "Data change" for further contributors.
