PCV4
Braun; Frankfurt
- Country
- Germany
- Manufacturer / Brand
- Braun; Frankfurt
- Year
- 1961–1967
- Category
- Sound/Video Recorder and/or Player
- Radiomuseum.org ID
- 24106
Prospektblatt.

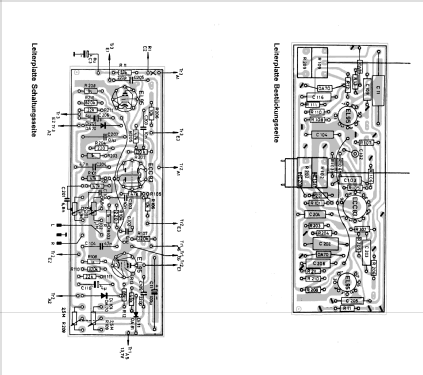

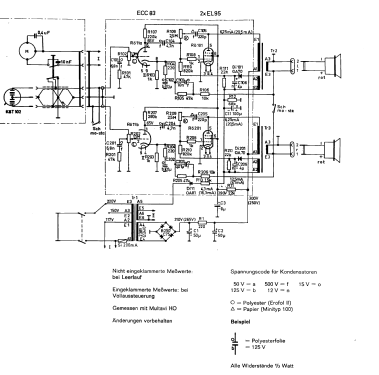

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 3
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Details
- Rec.Player+Audio.Amp+LS
- Power type and voltage
- Alternating Current supply (AC) / 117; 150; 220 Volt
- Loudspeaker
- 2 Loudspeakers
- Material
- Leather / canvas / plastic - over other material
- from Radiomuseum.org
- Model: PCV4 - Braun; Frankfurt
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 400 x 260 x 210 mm / 15.7 x 10.2 x 8.3 inch
- Notes
- 4 Geschwindigkeiten; Stereo-Kristall-System; NF-Verstärker mit 2 Endstufen je 2 W; Lautsprecher in 2 symetrischen Gehäusen, die zusammengelegt den Deckel des Koffers bilden.
- Net weight (2.2 lb = 1 kg)
- 8 kg / 17 lb 9.9 oz (17.621 lb)
- External source of data
- Erb
- Source of data
- HdB d.Rdf-& Ferns-GrH 1961/62
