222-UKW-Phono; Braun; Frankfurt (ID = 244912) Radio

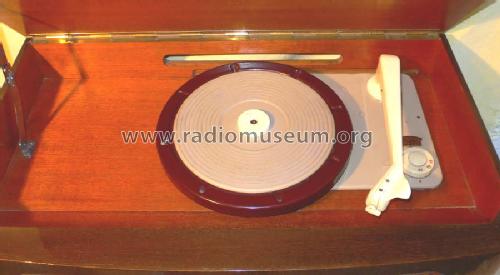

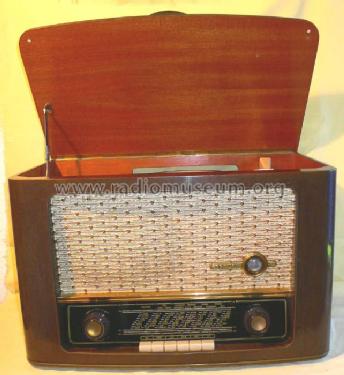

Braun; Frankfurt: 222-UKW-Phono [Radio] ID = 244912 900x593
Select picture or schematic to display from thumbnails on the right and click for download.
For model 222-UKW-Phono, Braun; Frankfurt

Country:  Germany
Manufacturer / Brand:  Braun; Frankfurt
Year: 1953/1954 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7: EF80 EC92 ECH81 EF85 EM11 EABC80 EL41
Main principle Superheterodyne (common); ZF/IF 472/10700 kHz
Tuned circuits 6 AM circuit(s)     9 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details Record Player (perh.Changer)
Power type and voltage Alternating Current supply (AC) / 110-240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: 222-UKW-Phono - Braun; Frankfurt
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 555 x 350 x 330 mm / 21.9 x 13.8 x 13 inch
Notes

Rundfunk-Chassis = 222UKW; Phono-Chassis = 777W mit drei Geschwindigkeiten.

Net weight (2.2 lb = 1 kg) 14.2 kg / 31 lb 4.4 oz (31.278 lb)
Price in first year of sale 398.00 DM
External source of data Erb
Source of data Kat.d.Rundf.GrossH.1953/54
Literature/Schematics (1) -- Original-techn. papers.


All listed radios etc. from Braun; Frankfurt
Here you find 1039 models, 903 with images and 640 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.






Forum contributions about this model
Braun; Frankfurt: 222-UKW-Phono
Threads: 1 | Posts: 1
Hits: 1743     Replies: 0
braun: 222-UKW-Phono; Plattenspieler
Werner Hauf
20.May.13
  1

Bei der Reparatur des Plattenspielers 777 ist zu beachten, dass der Motor nur für 110 Volt ausgelegt ist.
