Phono-Super 300UKW EAA91

Phono-Super 300UKW; Braun; Frankfurt (ID = 66503) Radio Phono-Super 300UKW; Braun; Frankfurt (ID = 66504) Radio
Phono-Super 300UKW; Braun; Frankfurt (ID = 97817) Radio Phono-Super 300UKW; Braun; Frankfurt (ID = 97819) Radio
Phono-Super 300UKW; Braun; Frankfurt (ID = 368883) Radio Phono-Super 300UKW; Braun; Frankfurt (ID = 393016) Radio
Phono-Super 300UKW; Braun; Frankfurt (ID = 737583) Radio Phono-Super 300UKW; Braun; Frankfurt (ID = 982178) Radio
Phono-Super 300UKW; Braun; Frankfurt (ID = 982179) Radio Phono-Super 300UKW; Braun; Frankfurt (ID = 982180) Radio
Use red slider bar for more.

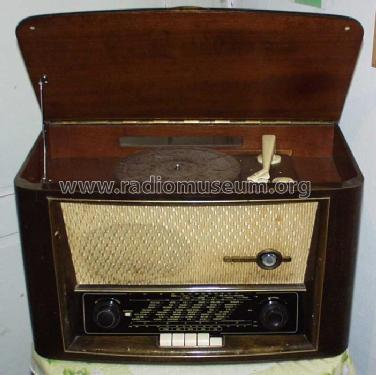

Phono-Super 300UKW; Braun; Frankfurt (ID = 66503) Radio
Braun; Frankfurt: Phono-Super 300UKW [Radio] ID = 66503 703x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model Phono-Super 300UKW EAA91, Braun; Frankfurt:
Phono 300UKW

Country:  Germany
Manufacturer / Brand:  Braun; Frankfurt
Year: 1952/1953 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7: EF80 ECH42 EAF42 EAA91 EM11 EF41 EL41
Main principle Superheterodyne (common); ZF/IF 473/10700 kHz
Tuned circuits 6 AM circuit(s)     9 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details Record Player (not changer)
Power type and voltage Alternating Current supply (AC) / 110; 125; 220; 240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out 6 W (unknown quality)
from Radiomuseum.org Model: Phono-Super 300UKW [EAA91] - Braun; Frankfurt
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 570 x 350 x 325 mm / 22.4 x 13.8 x 12.8 inch
Notes Phono-Chassis = 777W.
Net weight (2.2 lb = 1 kg) 14.4 kg / 31 lb 11.5 oz (31.718 lb)
Price in first year of sale 438.00 DM
External source of data Alfred Zeeb, Canada
Source of data Kat.d.Rundf.GrossH.1952/53

Model page created by Ernst Erb. See "Data change" for further contributors.
