For model Phono-Super 6GW, Braun; Frankfurt:
eBay2007

Country:  Germany
Manufacturer / Brand:  Braun; Frankfurt
Year: 1935/1936 Category: Broadcast Receiver - or past WW2 Tuner

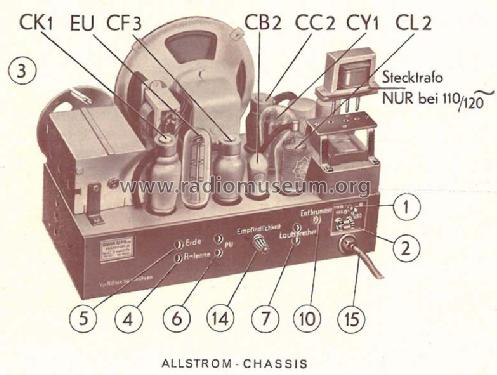

Valves / Tubes 6: CK1 CF3 CB2 CC2 CL2 CY1 EUIX
Main principle Superheterodyne (common); ZF/IF 463 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details Record Player (perh.Changer)
Power type and voltage AC/DC-set / 110-240 Volt
Loudspeaker Permanent or electro-dynamic (moving coil), system not known yet.
Power out
from Radiomuseum.org Model: Phono-Super 6GW - Braun; Frankfurt
Material Wooden case
Notes Feldstärke-Anzeige
Price in first year of sale 375.00 RM
Source of data Katalog Radio-Zentrale Alex v. Prohaska 1935/1936 / Radiokatalog Band 1, Ernst Erb
Circuit diagram reference Lange+Schenk+FS-Röhrenbestückung
