Phono-Super 960W (960WL)

Phono-Super 960W ; Braun; Frankfurt (ID = 11579) Radio

Phono-Super 960W ; Braun; Frankfurt (ID = 1022325) Radio

Phono-Super 960W ; Braun; Frankfurt (ID = 1022326) Radio
Phono-Super 960W ; Braun; Frankfurt (ID = 35908) Radio Phono-Super 960W ; Braun; Frankfurt (ID = 35909) Radio
Phono-Super 960W ; Braun; Frankfurt (ID = 35912) Radio Phono-Super 960W ; Braun; Frankfurt (ID = 35911) Radio
Phono-Super 960W ; Braun; Frankfurt (ID = 30563) Radio Phono-Super 960W ; Braun; Frankfurt (ID = 30564) Radio
Phono-Super 960W ; Braun; Frankfurt (ID = 35910) Radio Phono-Super 960W ; Braun; Frankfurt (ID = 35913) Radio
Phono-Super 960W ; Braun; Frankfurt (ID = 31425) Radio Phono-Super 960W ; Braun; Frankfurt (ID = 30565) Radio
Use red slider bar for more.
Phono-Super 960W ; Braun; Frankfurt (ID = 35908) Radio
Braun; Frankfurt: Phono-Super 960W [Radio] ID = 35908 933x628
Select picture or schematic to display from thumbnails on the right and click for download.

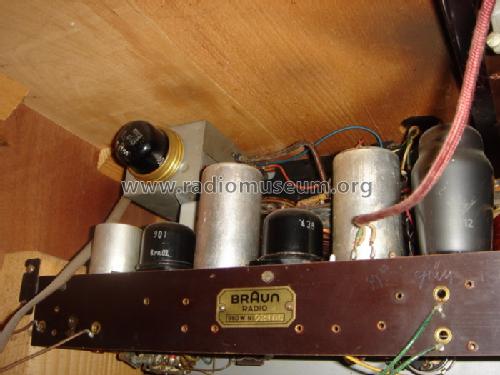

For model Phono-Super 960W (960WL), Braun; Frankfurt

Country:  Germany
Manufacturer / Brand:  Braun; Frankfurt
Year: 1950/1951 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: ECH11 EBF11 EF12 EL12 EM11 AZ12
Main principle Superheterodyne (common); ZF/IF 473 kHz
Tuned circuits 7 AM circuit(s)
Wave bands Ready for FM, has Broadcast, Long Wave, several Short Wave.
Details Changer (Record changer)
Power type and voltage Alternating Current supply (AC) / 110-240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 22 cm = 8.7 inch
Power out
from Radiomuseum.org Model: Phono-Super 960W - Braun; Frankfurt
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 710 x 410 x 380 mm / 28 x 16.1 x 15 inch
Notes UKW vorbereitet, Bandbreitenregelung. Zehnplattenwechsler.
Im "Katalog des Rundfunkgroßhandels 1950/51" als 960WL geführt.
Net weight (2.2 lb = 1 kg) 24 kg / 52 lb 13.8 oz (52.863 lb)
Price in first year of sale 635.00 DM
Source of data Kat.d. Rundf.Gr.Handel 1950/51 / Radiokatalog Band 1, Ernst Erb
Circuit diagram reference Lange Schaltungen der Funkindustrie, Buch 2
Mentioned in Funkschau (5015)
Literature/Schematics (1) -- Original-techn. papers.
