EL12

Information - Help
ID = 366

Country:
Europe
Brand: Common type Europe tube/semicond.
Developer: Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH
Tube type:  Vacuum Pentode   Power/Output
Identical to EL12
Similar Tubes
Different maximum ratings:
  EL12/325 ; EL12/350 ; EL12/375 ; EL12/425 ; EL12N ; EL150
Other base:
  EL36_GB ; EL6
Multiple differences or of other kind:
  EL12spez
First year Jul.1938 Tube leaflet collection E.Erb Analysis by original leaflets (V7)
First Source (s)
15.Jul.1938 : Funk 1938 #14
Predecessor Tubes AL5   EL5
Successor Tubes 1950   EL34   EL172

Base German Steel Y8A, 1938 (Codex=Rdo)
Filament Vf 6.3 Volts / If 1.2 Ampere / Indirect / Specified voltage AC/DC
Description

18 W power output pentode with almost twice the sensitivity as the AL5 (or EL5), intended for applications designed for normal output pentodes as the EL11, but where twice the output power is desired.
A suffix /xxx indicates the max. voltage this tube is especially selected for, otherwise it's 250 V.
The EL12 spez. has a plate top cap. The EL6 is a parallel type with P base. [Jacob Roschÿ,13May 2003]


Text in other languages (may differ)
Tube prices 25 Tube prices (visible for members only)
Information source Taschenbuch zum Röhren-Codex 1948/49

EL12: corrected version
Roland Langfeld

56_3.png EL12: Telefunken Werkstattbuch
Wolfgang Bauer

More ...

Just Qvigstad
EL12: Telefunken 1943
Robert Schmalstieg

More ...
Usage in Models 1= 1938?? ; 1= 1938? ; 16= 1938 ; 7= 1939? ; 26= 1939 ; 3= 1940?? ; 2= 1940? ; 11= 1940 ; 9= 1941 ; 3= 1942 ; 1= 1944 ; 2= 1945?? ; 7= 1946?? ; 3= 1946 ; 1= 1947?? ; 4= 1947? ; 8= 1947 ; 2= 1948?? ; 2= 1948? ; 21= 1948 ; 6= 1949? ; 32= 1949 ; 7= 1950?? ; 4= 1950? ; 46= 1950 ; 1= 1951?? ; 3= 1951? ; 34= 1951 ; 3= 1952?? ; 9= 1952? ; 40= 1952 ; 1= 1953?? ; 7= 1953? ; 52= 1953 ; 9= 1954? ; 41= 1954 ; 1= 1955?? ; 5= 1955? ; 4= 1955 ; 1= 1956?? ; 3= 1956? ; 2= 1956 ; 3= 1957 ; 1= 1958? ; 1= 1959? ; 1= 9999

Quantity of Models at Radiomuseum.org with this tube (valve, valves, valvola, valvole, válvula, lampe):447


Collection of



EL12


Variants

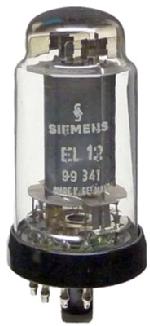

with tubular (straight) bulb


Forum contributions about this tube
EL12
Threads: 2 | Posts: 3
Hits: 3606     Replies: 0
EL12 Valvo et EL12 Telefunken)
Michel Deluz
28.Dec.11
  1

 La tension limite donnée par Telefunken pour son EL12 est de 350v anodiques et 350v g2. Curieusement Philips, dans ses caractéristiques, réduit ces tensions limites à 250v anodiques et 275v g2. Un examen détaillé des caractéristiques du tube montre que effectivement les EL12 construits par Valvo n'ont pas les mêmes possibilités que ceux costruits par Telefunken, et ne dépassent pas celles du EL6. Au point que la seule différence entre un EL6 et un EL12 construit par Valvo ne serait qu'un changement de culot… Sachant que le EL12 a été conçu par Telefunken et que le EL6 par Philips, s'agirait-il d'une petite guerre commerciale ?

Michel Deluz


Hits: 4888     Replies: 1
EL12 (EL12) mit "Bauchbinde"
Dietmar Rudolph † 6.1.22
15.May.06
  1

In einer Siemens Kammermusikschatulle 85W befindet sich als Originalbestückung eine EL12 mit einer Außenmetallisierung, wie sie (teilweise) auch bei der ECL11 oder bei der EBL1 anzutreffen ist.





Die Beschriftung ist heute kaum noch lesbar. (Das möge man mir nachsehen, da ich dieses Radio seit ca. 1957 besitze. Inzwischen wurde es auch wieder in den Originalzustand zurückgebaut. Jugendsünden, wer hat keine begangen?)

Frage an die Experten: Gibt es noch weitere Röhren, die (wenigstens zeitweise) mit solchen "Bauchbinden" hergestellt wurden?

Mit freundlichen Grüßen

Dietmar Rudolph

Wolfgang Bauer
16.May.06
  2 Sg. Herr Rudolph,

das gibt es bei vielen Herstellern und in den verschiedensten Farben.

MfG. WB

EL12
End of forum contributions about this tube
