Kleinsuper SK2b

Kleinsuper SK2b; Braun; Frankfurt (ID = 286561) Radio

Kleinsuper SK2b; Braun; Frankfurt (ID = 87722) Radio
Kleinsuper SK2b; Braun; Frankfurt (ID = 2256596) Radio Kleinsuper SK2b; Braun; Frankfurt (ID = 2256598) Radio

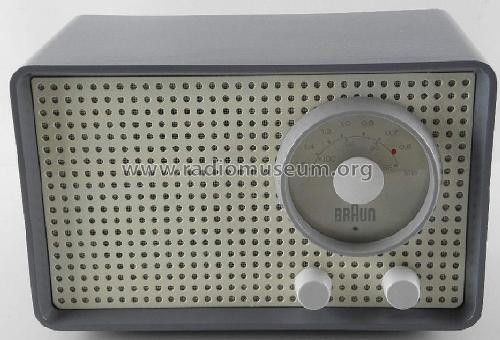

Kleinsuper SK2b; Braun; Frankfurt (ID = 1810778) Radio Kleinsuper SK2b; Braun; Frankfurt (ID = 144213) Radio
Kleinsuper SK2b; Braun; Frankfurt (ID = 144214) Radio Kleinsuper SK2b; Braun; Frankfurt (ID = 144215) Radio

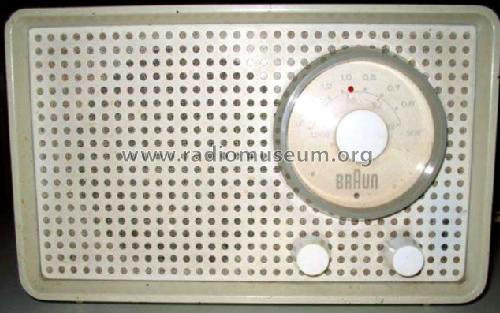

Kleinsuper SK2b; Braun; Frankfurt (ID = 144216) Radio Kleinsuper SK2b; Braun; Frankfurt (ID = 158858) Radio

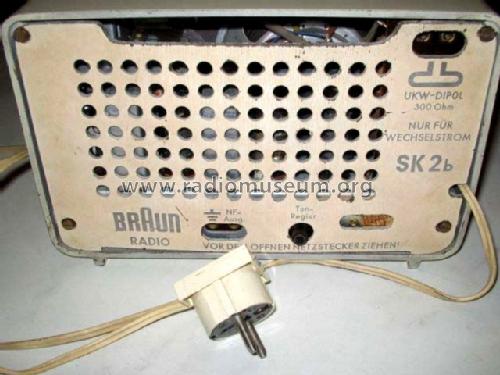

Kleinsuper SK2b; Braun; Frankfurt (ID = 158859) Radio Kleinsuper SK2b; Braun; Frankfurt (ID = 158860) Radio
Use red slider bar for more.
Kleinsuper SK2b; Braun; Frankfurt (ID = 2256596) Radio
Braun; Frankfurt: Kleinsuper SK2b [Radio] ID = 2256596 1085x830
Select picture or schematic to display from thumbnails on the right and click for download.
For model Kleinsuper SK2b, Braun; Frankfurt

Country:  Germany
Manufacturer / Brand:  Braun; Frankfurt
Year: 1956–1958 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: ECC85 EF89 EF89 EABC80 EL84
Semiconductors (the count is only for transistors) E250C85
Main principle Superheterodyne (common); ZF/IF 460/10700 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)     9 FM circuit(s)
Wave bands Broadcast (BC) and FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 115; 150; 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 13 inch = 33 cm
Power out 2.5 W (unknown quality)
from Radiomuseum.org Model: Kleinsuper SK2b - Braun; Frankfurt
Material Bakelite case
Shape Tablemodel, Mantel/Midget/Compact up to 14" width, but not a Portable (See power data. Sometimes with handle but for mains only).
Dimensions (WHD) 234 x 152 x 130 mm / 9.2 x 6 x 5.1 inch
Notes

In Funkschau 14/1956 erwähnt.

Der SK2b mit MW und UKW wurde parallel zum SK3 mit LW und UKW gebaut, die Rückwandbezeichnung wurde bei einigen Geräten durch Aufkleber "angepasst".

Net weight (2.2 lb = 1 kg) 3.3 kg / 7 lb 4.3 oz (7.269 lb)
Source of data -- Schematic
Mentioned in Handbuch RFP 1957 (Hdb. für Rundfunk-Phono-Fernsehen 1957/58, S. 40)
Literature/Schematics (1) Funkschau 14/1956

Model page created by Konrad Birkner † 12.08.2014. See "Data change" for further contributors.
