Steuergerät RCS9 Ch= RC9E

• Country
• Germany

• Manufacturer / Brand
• Braun; Frankfurt

• Year
• 1961–1965

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 1398

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 11

• Valves / Tubes

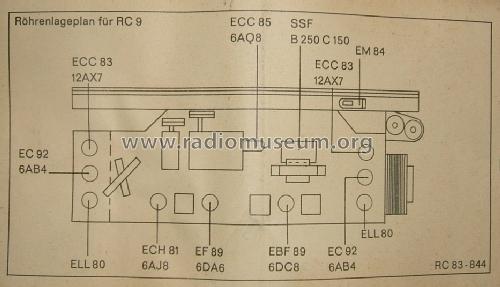

• ECC85 ECH81 EF89 EBF89 EM84 ECC83 ECC83 EC92 EC92 ELL80 ELL80

• Main principle
• Superheterodyne (common); ZF/IF 455/10700 kHz

• Tuned circuits
• 8 AM circuit(s)     12 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 150; 220; 240 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Material
• Wooden case

• from Radiomuseum.org

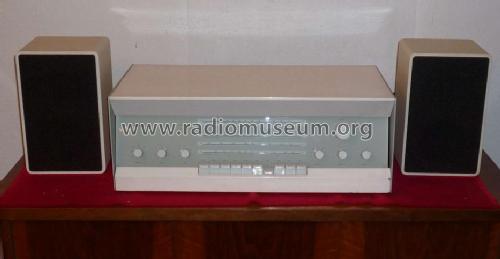

• Model: Steuergerät RCS9 Ch= RC9E - Braun; Frankfurt

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 562 x 195 x 280 mm / 22.1 x 7.7 x 11 inch

• Notes

• Dreh- und abschaltbare Ferritantenne; Stereo-Decoder TD9 nachrüstbar; Stereo-NF-Verstärker mit 2 Gegentakt-Endstufen je 7 W.

  Ab Baujahr 1963 ist bei diesem Modell der Stereodecoder TD 9 eingebaut.
  Er befindet sich unter dem Chassis auf der Bodenabdeckung aus Pappe - (Platinen-Enbau).

• Net weight (2.2 lb = 1 kg)
• 13 kg / 28 lb 10.1 oz (28.634 lb)

• Price in first year of sale
• 545.00 DM

• Source of data
• HdB d.Rdf-& Ferns-GrH 1961/62 / Radiokatalog Band 1, Ernst Erb
