Super 639GW

Super 639GW; Braun; Frankfurt (ID = 351181) Radio

Super 639GW; Braun; Frankfurt (ID = 8140) Radio

Super 639GW; Braun; Frankfurt (ID = 892905) Radio

Super 639GW; Braun; Frankfurt (ID = 1852849) Radio

Super 639GW; Braun; Frankfurt (ID = 1852850) Radio
Super 639GW; Braun; Frankfurt (ID = 351333) Radio Super 639GW; Braun; Frankfurt (ID = 351039) Radio
Super 639GW; Braun; Frankfurt (ID = 351040) Radio Super 639GW; Braun; Frankfurt (ID = 385179) Radio
Super 639GW; Braun; Frankfurt (ID = 385180) Radio Super 639GW; Braun; Frankfurt (ID = 385181) Radio
Super 639GW; Braun; Frankfurt (ID = 488933) Radio
Use red slider bar for more.
Super 639GW; Braun; Frankfurt (ID = 351333) Radio
Braun; Frankfurt: Super 639GW [Radio] ID = 351333 933x653
Select picture or schematic to display from thumbnails on the right and click for download.
For model Super 639GW, Braun; Frankfurt

Country:  Germany
Manufacturer / Brand:  Braun; Frankfurt
Year: 1938/1939 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: CK1 CF3 CB2 CL4 C/EM2 CY1 U920 or EUXII
Main principle Superheterodyne (common); ZF/IF 488 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage AC/DC-set / 110; 150; 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Super 639GW - Braun; Frankfurt
Material Wooden case
Dimensions (WHD) 580 x 320 x 225 mm / 22.8 x 12.6 x 8.9 inch
Notes variable Bandbreite
Net weight (2.2 lb = 1 kg) 14 kg / 30 lb 13.4 oz (30.837 lb)
Price in first year of sale 253.00 RM
Source of data Handbuch WDRG 1938 / Radiokatalog Band 1, Ernst Erb

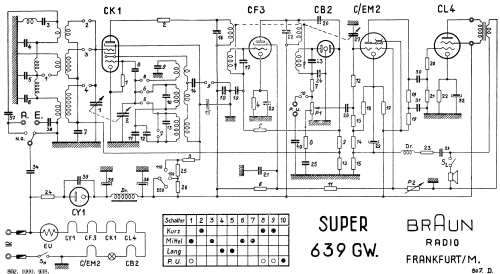

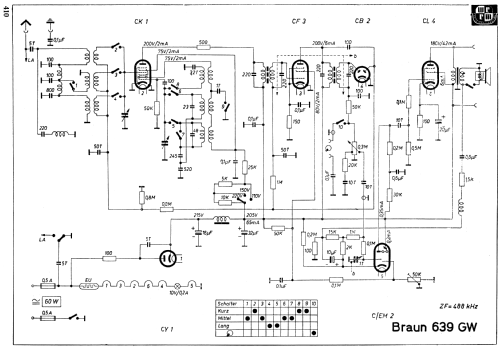

Circuit diagram reference Lange+Schenk+FS-Röhrenbestückung
