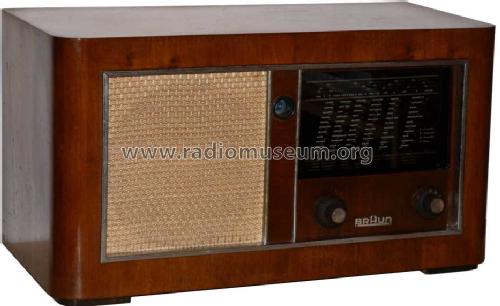

Super 639W; Braun; Frankfurt (ID = 797350) Radio
Braun; Frankfurt: Super 639W [Radio] ID = 797350 800x490
Select picture or schematic to display from thumbnails on the right and click for download.
For model Super 639W, Braun; Frankfurt

Country:  Germany
Manufacturer / Brand:  Braun; Frankfurt
Year: 1938/1939 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: AK2 AF3 AB2 AL4 AM2 AZ11
Main principle Super-Heterodyne (Super in general); ZF/IF 488 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110-240 Volt

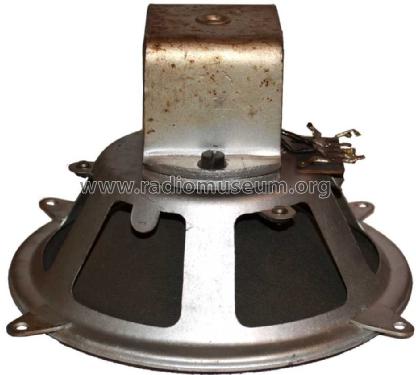

Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: Super 639W - Braun; Frankfurt
Material Wooden case
Dimensions (WHD) 580 x 320 x 265 mm / 22.8 x 12.6 x 10.4 inch
Notes AZ1? variable Bandbreite
Net weight (2.2 lb = 1 kg) 14 kg / 30 lb 13.4 oz (30.837 lb)
Price in first year of sale 229.00 RM
Collectors' prices
Source of data Handbuch WDRG 1938 / Radiokatalog Band 1, Ernst Erb
