TS40 Ch= TC40
Braun; Frankfurt
- Country
- Germany
- Manufacturer / Brand
- Braun; Frankfurt
- Year
- 1963/1964
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 24677
aus Prospekt
Funkschau 20.1964

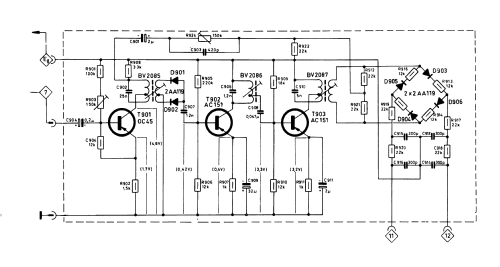

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 27
- Semiconductors
- AF102 AF124 AF125 OC71 AF126 AF121 OC45 TF65 or. AC151r TF66 AC152 AD130 BA110 OA70 RL232g AA119 SZ9 OY5061 BYY33
- Main principle
- Superheterodyne (common); ZF/IF 455/10700 kHz
- Tuned circuits
- 8 AM circuit(s) 12 FM circuit(s)
- Wave bands
- Broadcast, Long Wave, Short Wave plus FM or UHF.
- Power type and voltage
- Alternating Current supply (AC) / 115; 125; 160; 220; 240 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Material
- Metal case
- from Radiomuseum.org

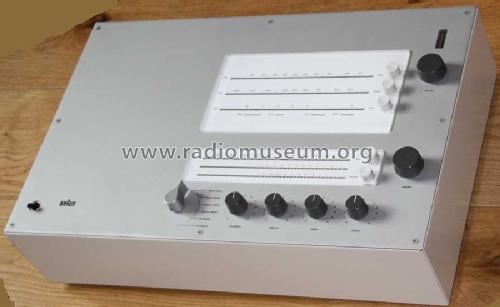

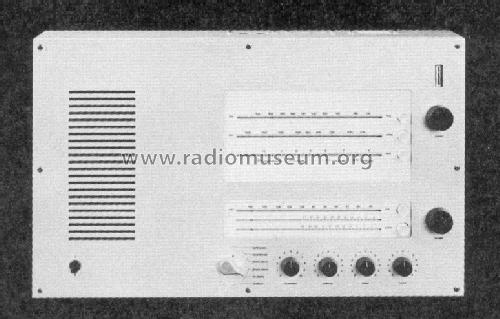

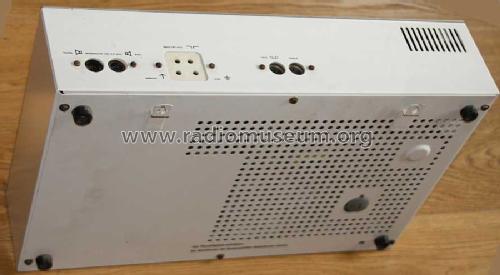

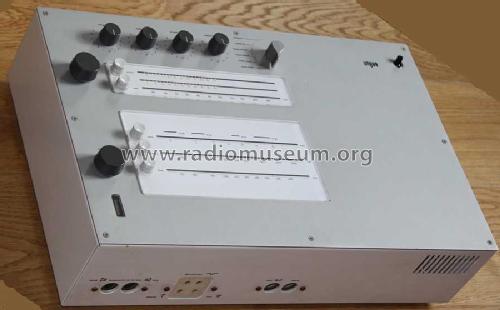

- Model: TS40 Ch= TC40 - Braun; Frankfurt
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 480 x 280 x 110 mm / 18.9 x 11 x 4.3 inch
- Notes
- Stereo-NF-Verstärker mit 2 Gegentakt-Endstufen je 8 W (Sinus); Abstimmanzeige durch Zeigerinstrument.
Stereo-Decoder nachrüstbar.
Transistoren (jeweils 1x pro Typ gelistet): AF102, AF124, 3x AF125, OC71, 3x AF126, 6x TF65, 6x TF66, 2x AC152, 4x AD130.
- Net weight (2.2 lb = 1 kg)
- 16.2 kg / 35 lb 10.9 oz (35.683 lb)
- External source of data
- Erb
- Source of data
- Handbuch VDRG 1963/1964
