• Country
• Germany

• Manufacturer / Brand
• Braun; Frankfurt

• Year
• 1952 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 121224

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• EF80 EC92 ECH81 EF85 EM11 EABC80 EL41

• Main principle
• Superheterodyne (common); ZF/IF 473/10700 kHz; 1 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)     9 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 220; 240 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Power out
• 5 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org

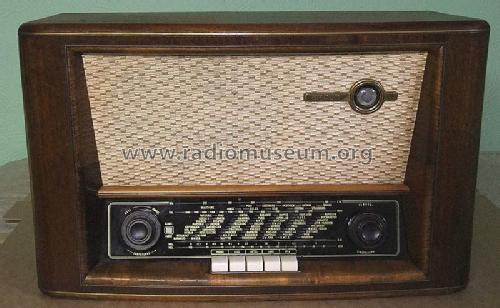

• Model: W300UKW - Braun; Frankfurt

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 570 x 350 x 325 mm / 22.4 x 13.8 x 12.8 inch

• Notes

• Es gibt eine Variante mit Phono.

• Net weight (2.2 lb = 1 kg)
• 14.4 kg / 31 lb 11.5 oz (31.718 lb)

• Source of data
• - - Data from my own collection

• Author
• Model page created by Reinhard Hanschke. See "Data change" for further contributors.

• Other Models

• Here you find 1061 models, 931 with images and 651 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
