Burwood 822

Burwood 822; Breville; Sydney (ID = 2415906) Radio
Burwood 822; Breville; Sydney (ID = 1212211) Radio Burwood 822; Breville; Sydney (ID = 1212213) Radio
Burwood 822; Breville; Sydney (ID = 1212214) Radio
Use red slider bar for more.
Burwood 822; Breville; Sydney (ID = 1212211) Radio
Breville; Sydney: Burwood 822 [Radio] ID = 1212211 933x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model Burwood 822, Breville; Sydney

Country:  Australia
Manufacturer / Brand:  Breville; Sydney
Year: 1948/1949 Category: Broadcast Receiver - or past WW2 Tuner

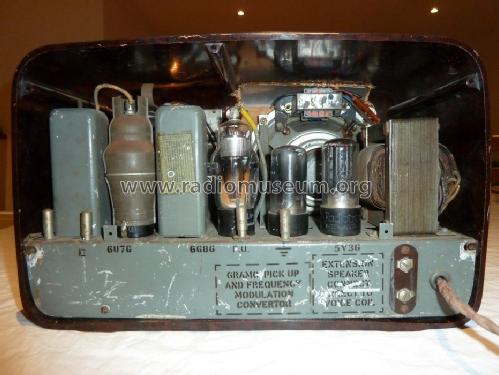

Valves / Tubes 5: ECH35 6U7G 6G8G 6V6GT 5Y3GT
Main principle Superheterodyne (common); ZF/IF 446 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Alternating Current supply (AC) / 220; 240; 260 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6 inch = 15.2 cm
Power out
from Radiomuseum.org Model: Burwood 822 - Breville; Sydney
Material Moulded (Bakelite or Plastics)
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 13 x 8.5 x 7 inch / 330 x 216 x 178 mm
Notes

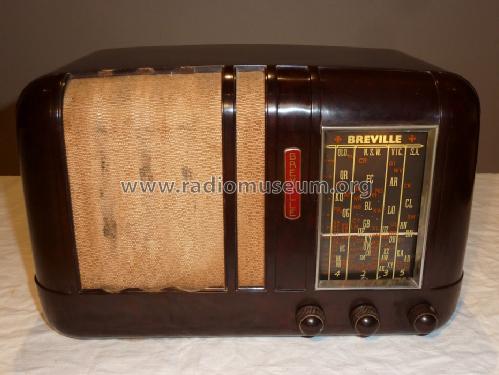

Features terminals for pick-up or FM converter; extension speaker; on/off combined with volume control; glass dial. "Burwood" moulded cabinet in Walnut.

Price given is for NSW & Victoria. Price in other states is £25/10/-

Net weight (2.2 lb = 1 kg) 18 lb 0 oz (18 lb) / 8.172 kg
Price in first year of sale 24.50 AUS £

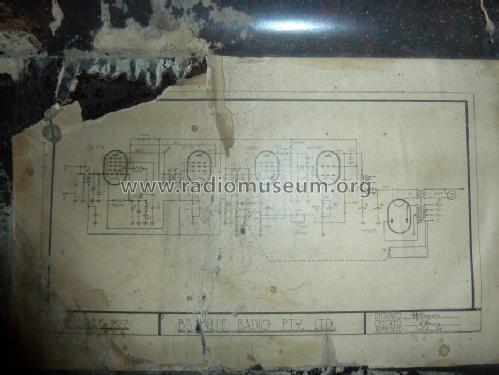

Circuit diagram reference Australian Official Radio Service Manual Vol. VII
Literature/Schematics (1) Australian Official Radio Service Manual AORSM (Volume 7, 1949, Page 93.)

Model page created by Stuart Irwin. See "Data change" for further contributors.
