Devon 84
Breville; Sydney
- Country
- Australia
- Manufacturer / Brand
- Breville; Sydney
- Year
- 1936
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 309646
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superhet with RF-stage; ZF/IF 182.5 kHz
- Wave bands
- Broadcast and Short Wave (SW).
- Power type and voltage
- Storage Battery for all (e.g. for car radios and amateur radios) / 6 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8 inch = 20.3 cm
- Material
- Wooden case
- from Radiomuseum.org

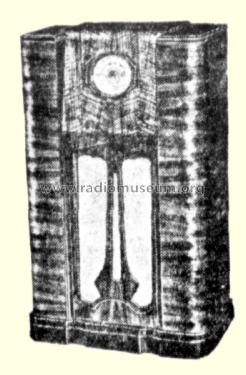

- Model: Devon 84 - Breville; Sydney
- Shape
- Console with any shape - in general
- Price in first year of sale
- 36.50 AUS £
- Mentioned in
- -- Original prospect or advert
- Literature/Schematics (1)
- Radio Trade Annual of Australia (6th Edition 1938, Page 260.)
- Author
- Model page created by Martin Kent. See "Data change" for further contributors.
