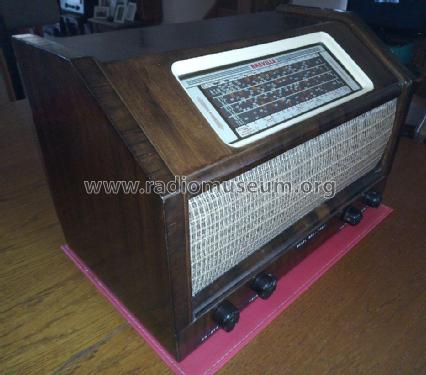

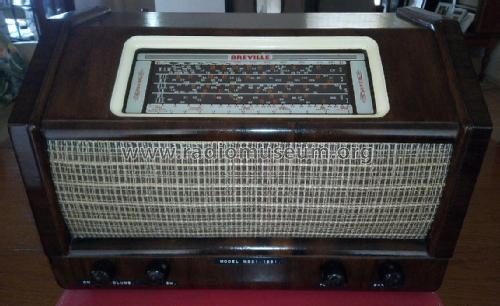

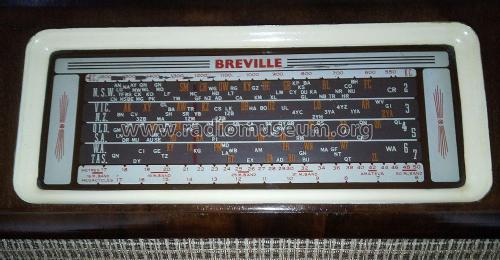

Breville; Sydney: M521 [Radio] ID = 2575319 1143x700
Select picture or schematic to display from thumbnails on the right and click for download.
|
|
||||
| Year: 1951 | Category: Broadcast Receiver - or past WW2 Tuner | ||||
| Valves / Tubes | 5: ECH33 or ECH35 6BA6 6AV6 6V6GT or 6AQ5 6X5GT or 6X4 |
|---|
| Main principle | Superheterodyne (common); ZF/IF 452 kHz; 2 AF stage(s) |
|---|---|
| Tuned circuits | 6 AM circuit(s) |
| Wave bands | Broadcast and Short Wave (SW). |
| Details | |
| Power type and voltage | Alternating Current supply (AC) / 220; 240; 260 Volt |
| Loudspeaker | Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) |
| Power out | |
| from Radiomuseum.org | Model: M521 - Breville; Sydney |
| Material | Wooden case |
| Shape | Tablemodel, low profile (big size). |
| Circuit diagram reference | Australian Official Radio Service Manual Vol. X |
