Pick-Me-Up 4 621M with EK2G or EK32 converter

ID = 184614

Pick-Me-Up 4 621M; Breville; Sydney (ID = 878181) Radio

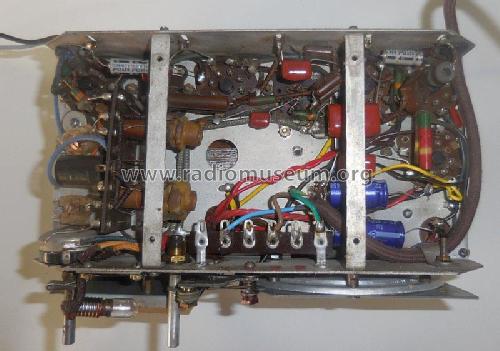

{gbW: "1400", gbH: "1100", mW: "477.0", mH: "375", kb: "134 KB", notes: "For model Pick-Me-Up 4 621M with EK2G or EK32 converter, Breville; Sydney:[br]This Breville 621 radio has an ECH35 converter,with the remaining valve lineup as of a model 621M but is not a 621M. I cannot find reference th this chassis within the limits of my access to AORSM manuals or other personally available information. Somewhere the suffix \"Y\" comes to the fore,but no knowledge of it's origin. The cabinet is common to the series,and the chassis is stamped with 621, no suffix apart from the serial number.", title: "Breville; Sydney Pick-Me-Up 4 621M from Kenneth Walker (1)", ite: "1"} {gbW: "1336", gbH: "1798", mW: "278.0", mH: "375", kb: "354 KB", notes: "For model Pick-Me-Up 4 621M with EK2G or EK32 converter, Breville; Sydney", title: "Breville; Sydney Pick-Me-Up 4 621M from Kenneth Walker (1)", ite: "1"} {gbW: "1308", gbH: "1073", mW: "457.0", mH: "375", kb: "174 KB", notes: "For model Pick-Me-Up 4 621M with EK2G or EK32 converter, Breville; Sydney:[br]Model 621-,not a 621M. Restored.", title: "Breville; Sydney Pick-Me-Up 4 621M from Kenneth Walker (1)", ite: "1"} {gbW: "1400", gbH: "801", mW: "500", mH: "286.0", kb: "97 KB", notes: "For model Pick-Me-Up 4 621M with EK2G or EK32 converter, Breville; Sydney", title: "Breville; Sydney Pick-Me-Up 4 621M from Kenneth Walker (1)", ite: "1"} {gbW: "1400", gbH: "1104", mW: "475.0", mH: "375", kb: "164 KB", notes: "For model Pick-Me-Up 4 621M with EK2G or EK32 converter, Breville; Sydney", title: "Breville; Sydney Pick-Me-Up 4 621M from Kenneth Walker (1)", ite: "1"} {gbW: "1400", gbH: "1050", mW: "500", mH: "375", kb: "207 KB", notes: "For model Pick-Me-Up 4 621M with EK2G or EK32 converter, Breville; Sydney", title: "Breville; Sydney Pick-Me-Up 4 621M from Kenneth Walker (1)", ite: "1"} {gbW: "1024", gbH: "676", mW: "500", mH: "330.0", kb: "114 KB", notes: "For model Pick-Me-Up 4 621M with EK2G or EK32 converter, Breville; Sydney:[br]Front View", title: "Breville; Sydney Pick-Me-Up 4 621M from RM Member 20127 (1)", ite: "1"} {gbW: "1024", gbH: "834", mW: "460.0", mH: "375", kb: "109 KB", notes: "For model Pick-Me-Up 4 621M with EK2G or EK32 converter, Breville; Sydney", title: "Breville; Sydney Pick-Me-Up 4 621M from RM Member 20127 (1)", ite: "1"} {gbW: "1024", gbH: "708", mW: "500", mH: "345.0", kb: "80 KB", notes: "For model Pick-Me-Up 4 621M with EK2G or EK32 converter, Breville; Sydney:[br]Note heat shield inside steel cabinet.", title: "Breville; Sydney Pick-Me-Up 4 621M from RM Member 20127 (1)", ite: "1"} {gbW: "921", gbH: "591", mW: "500", mH: "320.0", kb: "90 KB", notes: "For model Pick-Me-Up 4 621M with EK2G or EK32 converter, Breville; Sydney", title: "Breville; Sydney Pick-Me-Up 4 621M from RM Member 20127 (1)", ite: "1"}

Pick-Me-Up 4 621M; Breville; Sydney (ID = 1771215) Radio

Pick-Me-Up 4 621M; Breville; Sydney (ID = 1771216) Radio

Pick-Me-Up 4 621M; Breville; Sydney (ID = 1771217) Radio

Pick-Me-Up 4 621M; Breville; Sydney (ID = 1771219) Radio

Pick-Me-Up 4 621M; Breville; Sydney (ID = 1771220) Radio

Pick-Me-Up 4 621M; Breville; Sydney (ID = 1817958) Radio

Pick-Me-Up 4 621M; Breville; Sydney (ID = 1817959) Radio

Pick-Me-Up 4 621M; Breville; Sydney (ID = 1817960) Radio

Next pictures

Use red slider bar for more.

Breville; Sydney: Pick-Me-Up 4 621M [Radio] ID = 1771215 1400x1100

Select picture or schematic to display from thumbnails on the right and click for download.

For model Pick-Me-Up 4 621M with EK2G or EK32 converter, Breville; Sydney:

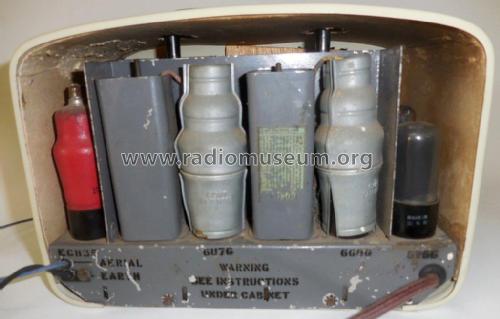

This Breville 621 radio has an ECH35 converter,with the remaining valve lineup as of a model 621M but is not a 621M. I cannot find reference th this chassis within the limits of my access to AORSM manuals or other personally available information. Somewhere the suffix 'Y' comes to the fore,but no knowledge of it's origin. The cabinet is common to the series,and the chassis is stamped with 621, no suffix apart from the serial number.

Country:

Australia

Manufacturer / Brand:

Breville; Sydney

Year: 1946/1947

Category: Broadcast Receiver - or past WW2 Tuner

Valves / Tubes

4: EK2G or EK32 6G8G 6V6GT 5Y3GT

Main principle	Superheterodyne (common); ZF/IF 446 kHz; 2 AF stage(s); Reflex
Tuned circuits	6 AM circuit(s)
Wave bands	Broadcast only (MW).
Details
Power type and voltage	Alternating Current supply (AC) / 220; 240; 260 Volt
Loudspeaker	Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org	Model: Pick-Me-Up 4 621M [with EK2G or EK32 converter] - Breville; Sydney
Material	Metal case
Shape	Tablemodel without push buttons, Mantel/Midget/Compact up to 14
Dimensions (WHD)	264 x 185 x 165 mm / 10.4 x 7.3 x 6.5 inch
Price in first year of sale	18.00 Aus£

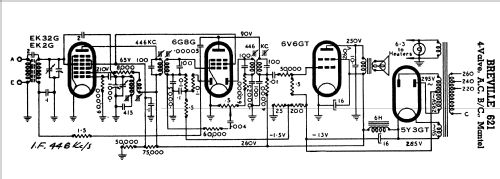

Circuit diagram reference	Australian Official Radio Service Manual Vol. VI
Literature/Schematics (1)	Mingay's Radio Diagram & I.F. Index

Model page created by Stuart Irwin. See "Data change" for further contributors.

All listed radios etc. from Breville; Sydney
Here you find 452 models, 169 with images and 167 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.

Collection of Kenneth Walker (AUS)
