- Country
- Italy
- Manufacturer / Brand
- Vega, BP Radio, Brionvega, Brion & Pajetta; Milano, Lissone (MI)
- Year
- 1975
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 243096

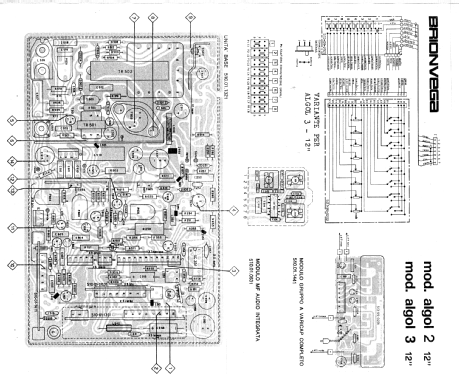

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 1
- Valves / Tubes
- A31-510W
- Number of Transistors
- 16
- Semiconductors
- BF199 BC252 BC252 BF257 BC547 BC547 BC547 BC547 BC547 BC547 BC337 BU104 BD137 BD138 BD138 ESM38 TBA950 CA3065 TBA820 TBA440
- Main principle
- Superheterodyne (common)
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Power type and voltage
- Line / Storage batteries (perhaps also batteries) / AC 220 / 12 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Algol 2 12" - Vega, BP Radio, Brionvega,
- Shape
- Tablemodel, with any shape - general.
- Notes
-

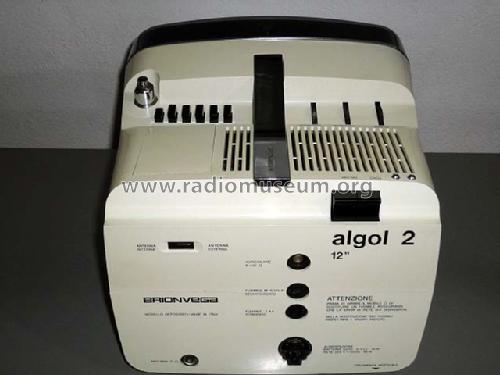

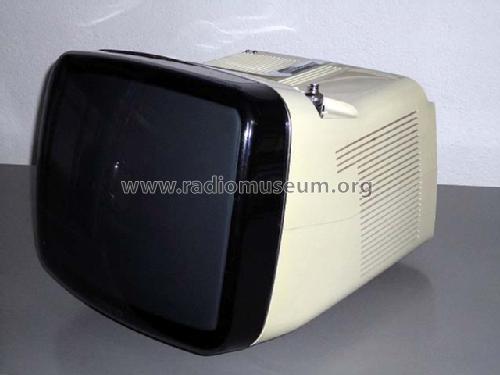

Brionvega algol 2 12" b/w design TV. Colors: Red, green, white, yellow, blue.
16 diodes (including rectifiers).
- Mentioned in

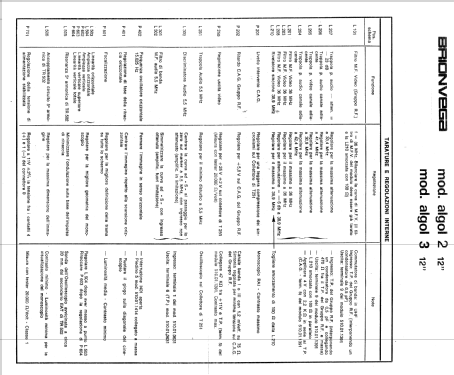

- -- Original-techn. papers.
- Other Models
-
Here you find 231 models, 131 with images and 117 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Vega, BP Radio, Brionvega, Brion & Pajetta; Milano, Lissone (MI)
Collections
The model Algol is part of the collections of the following members.
